IP communicators - Dualcom


Every second counts

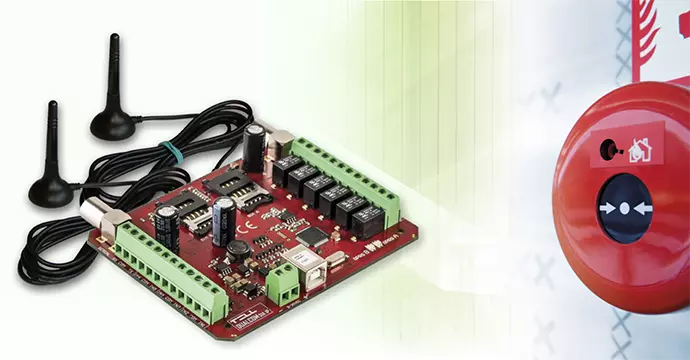

Communicator for fire alarm control panels, that converts contact input events to SIA IP (DC-09), TELLMon or TEX format and sends them to the alarm monitoring receivers over mobile Internet.
Due to the application of duplicated phone modules, the DUALCOM SIA IP guarantees a high security level, therefore, it is suitable for high-risk signal transmission applications (e.g. transmission of fire alarm events).
Product versions:
DUALCOM is available in 2G and 4G.

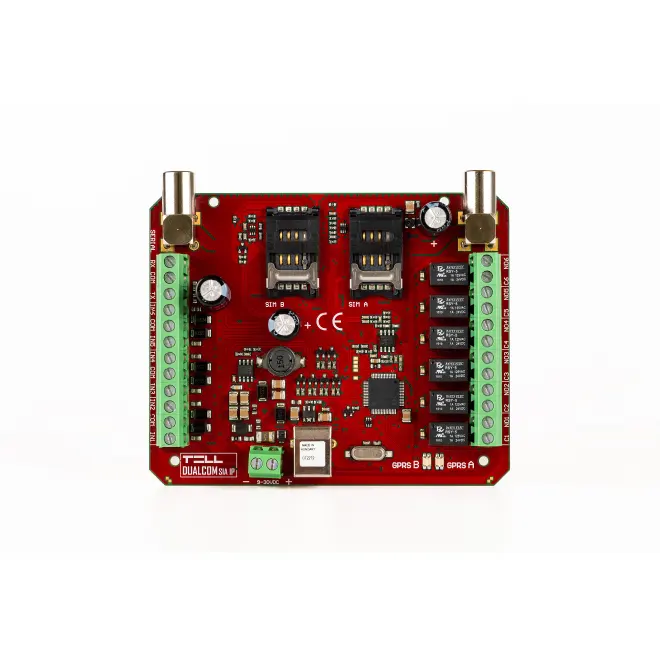

The DUALCOM SIA IP transmits the signals of fire alarm control panels to the monitoring station. It generates events from 6 contacts (adjustable up to 30) connected to fire alarm control panels. The events are transmitted in a duplicated form to the monitoring receiver through its two independent modem units.


Contact controlled communicator

6 NO/NC/EOL contact inputs

It can be used for any control panel which has contact outputs

Supported protocols: TELLMon, TEX-MVP SIA DC-09 protocol

Possibility to separate alarm and technical events, selective reporting

Using two independent modems at the same time

Direct communication with the receiver unit

Reporting to up to 4 IP addresses
