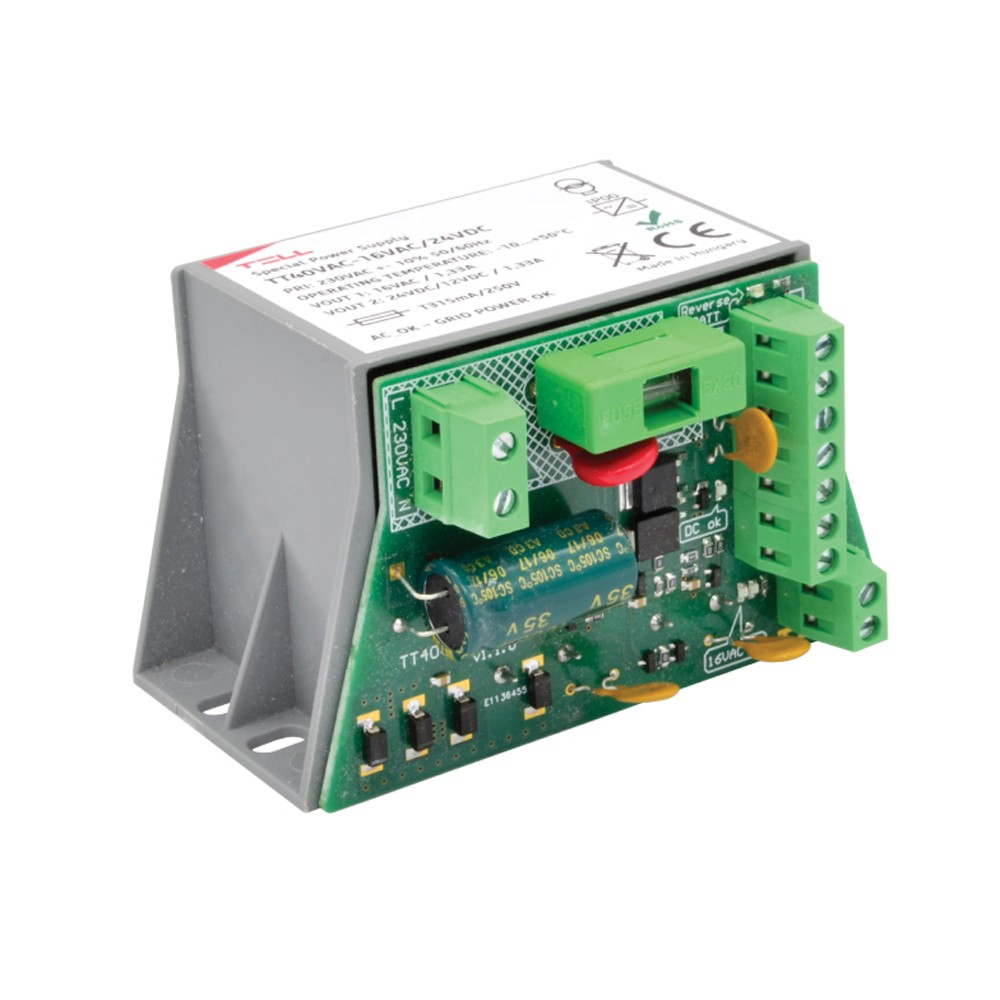

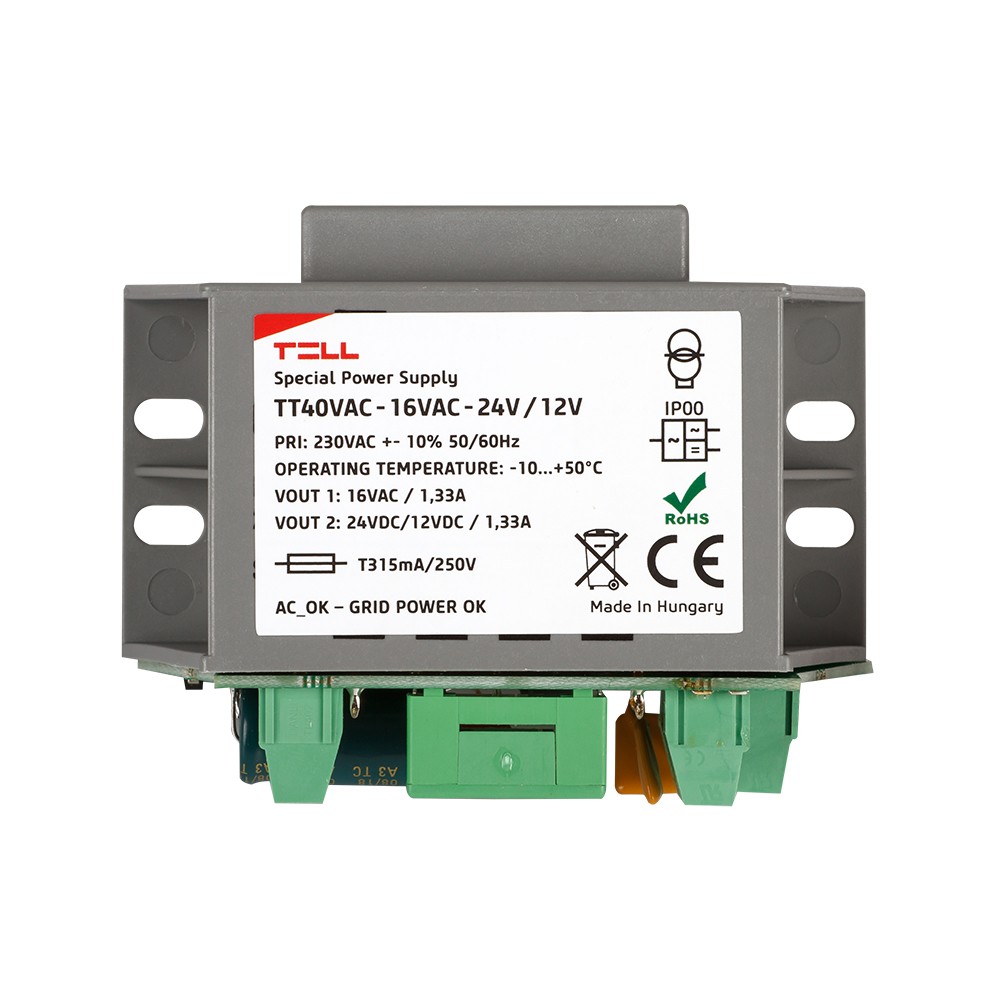

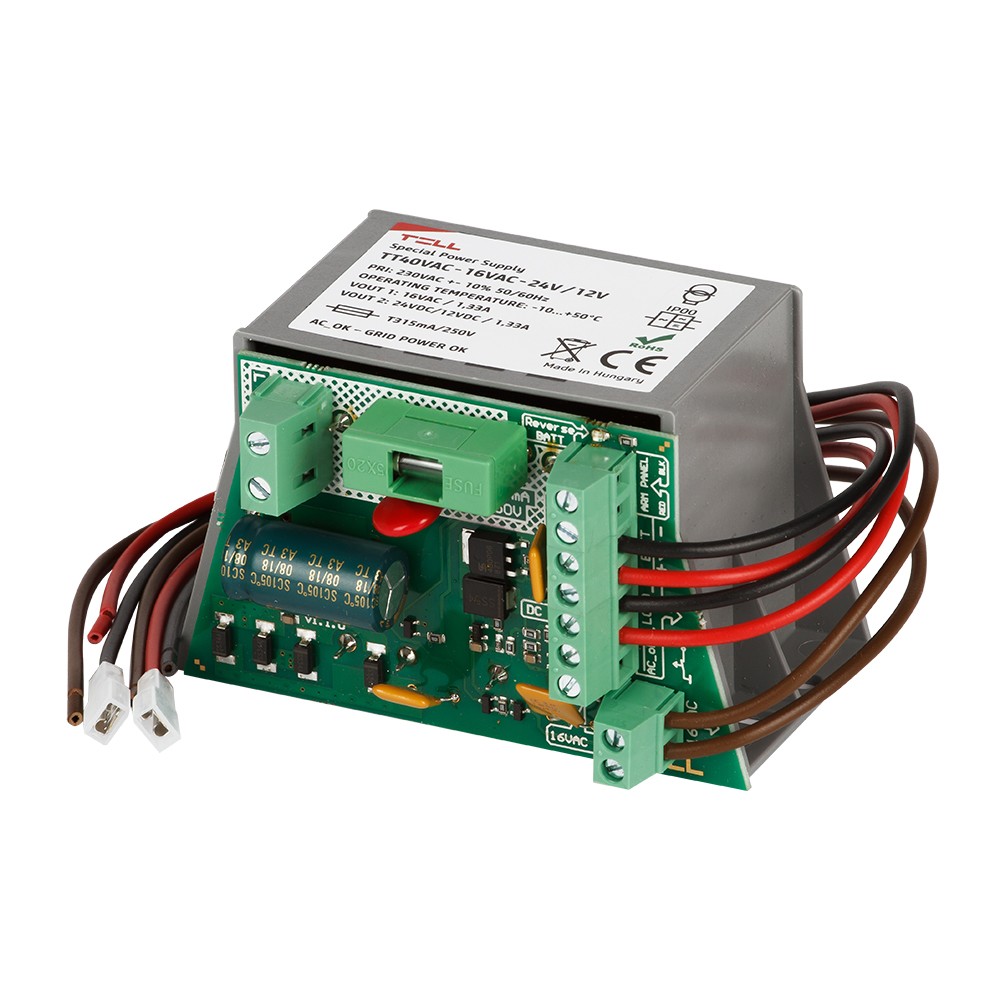

TT40VA-16VAC/24VDC

The TT40VA-16VAC/24VDC power supply was designed to provide uninterruptible power for an alarm system and its communicator.

Details

It provides a solution for powering the alarm control panel and the communicator from a single power supply, as well as for the limited load capacity of the alarm panel's auxiliary power output. Only a battery is needed to ensure uninterruptible operation, and it also provides effective protection against overload. Transformer power: 40VA.

Info

Technical specification

Operating temperature:

-10 ºC - +50 ºC

Dimensions:

95x60x75 mm

Product weight:

1 kg

Tápegység paraméterek

Input:

230 VAC +/- 10% 50/60Hz

Output:

16 VAC and 24 VDC

Maximum load:

2x1,33 A

Protection class:

II.

IP rating:

IP 00

Fuse:

T315 mA/250 V

Short-circuit protection:

Polyfuse

Overheating protection:

Yes

Power supply of alarm systems:

Yes

Protection agains reverse polarity:

Polyfuse

Weight:

740 g/db
