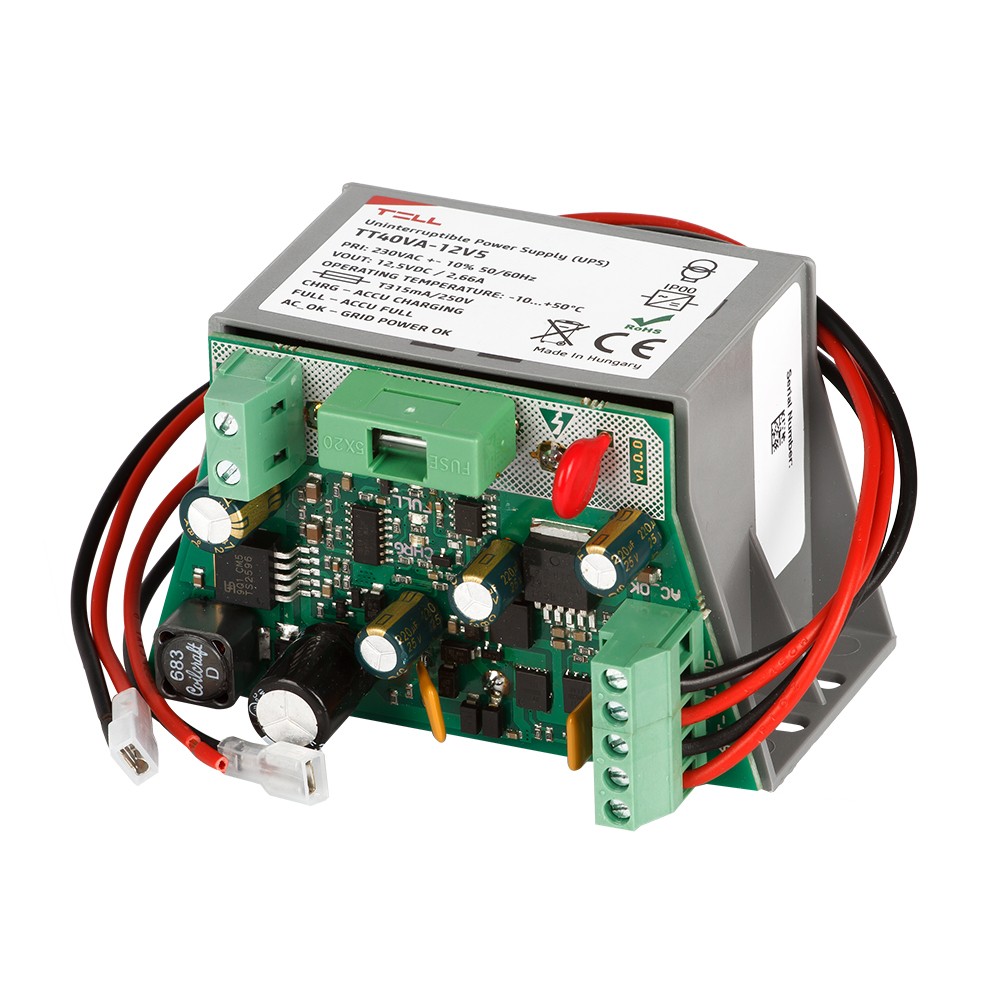

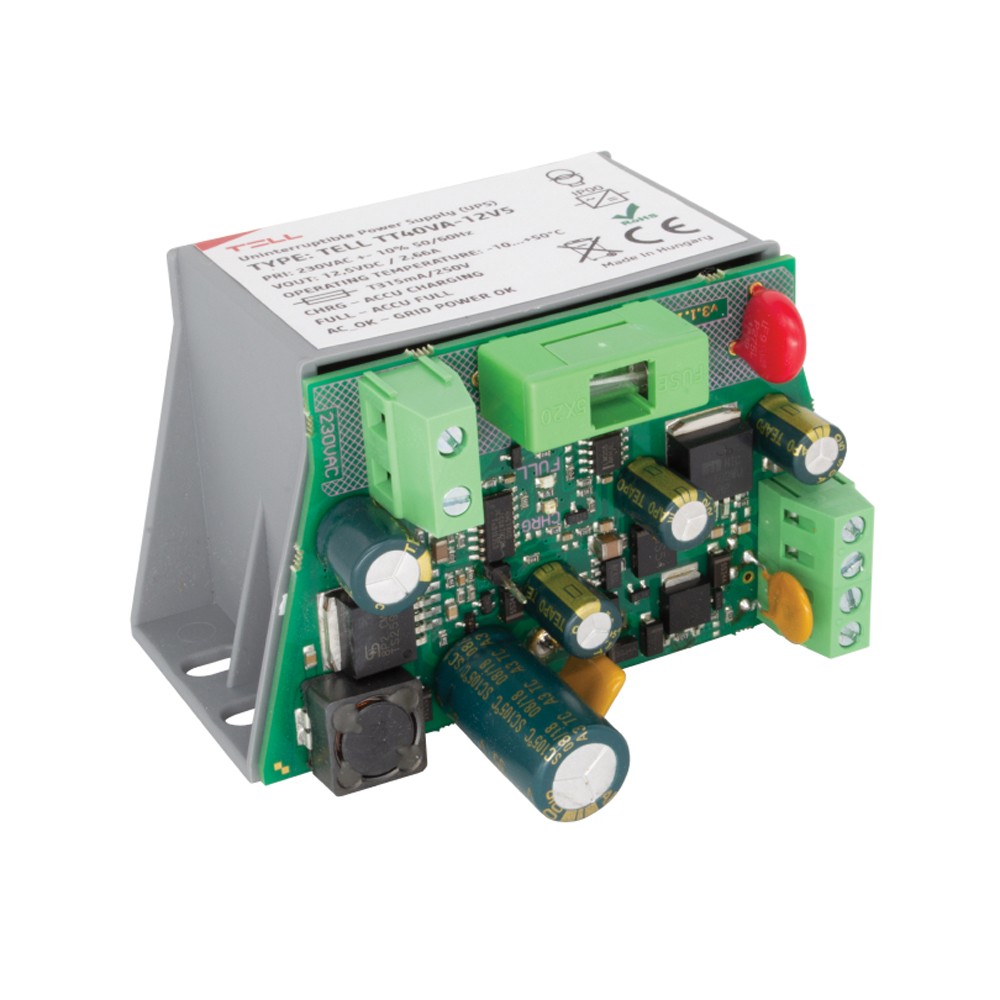

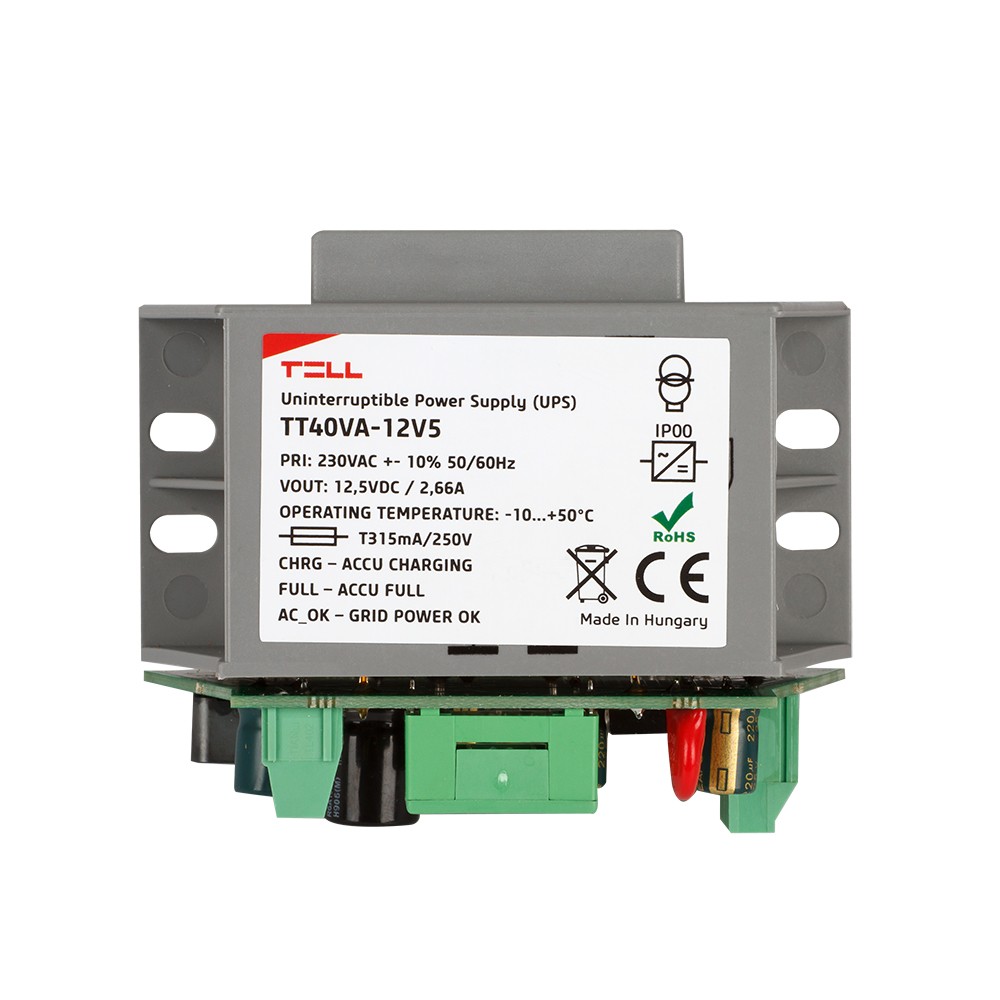

TT40VA-12V5

The TT40VA-12V5 power supply with the built-in automatic battery charger provides an uninterruptible and steady voltage to the connected device.

Details

It successfully bypasses mains power outages considered to be critical in the operation of devices, and it also provides effective protection against overload. Transformer power: 40VA.

Info

Technical specification

Operating temperature:

-10 ºC - +50 ºC

Dimensions:

95x60x75 mm

Product weight:

1 kg

Tápegység paraméterek

Input:

230 VAC +/- 10% 50/60Hz

Output:

12,5 VDC

Maximum load:

2,66 A

Protection class:

II.

IP rating:

IP 00

Fuse:

T315 mA/250 V

Short-circuit protection:

Polyfuse

Overheating protection:

Yes

Battery charging:

Yes

Battery charging current restriction:

450 mA

Protection agains reverse polarity:

polyfuse and P-MOSFET

Weight:

740 g/db
