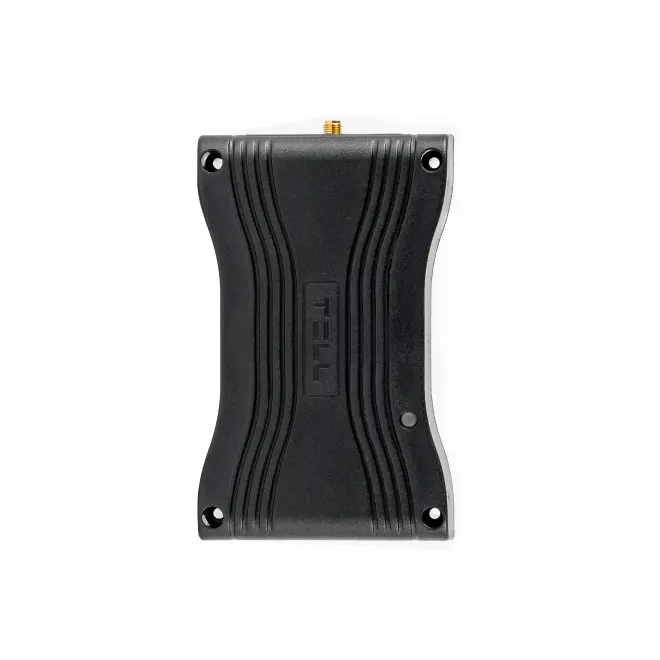

IP communicators - IP Bridge


Starting point of your own IoT network
Complex communicator which offers a solution for connecting alarm systems to remote monitoring stations. It can be used as a standalone reporting device or even as an IP-based control device.
Configure your device remotely! The only thing you need is your laptop and Internet connection.
Product versions:
- Ethernet-based IP Bridge PRO
- Dual network-based IP Bridge PRO (Ethernet + 4G)

The IP Bridge can be connected to any alarm control panel that has a landline communicator and supports the Ademco Contact ID protocol. The module receives the alarm control panel’s reports through a simulated landline and transmits to the monitoring station via mobile Internet.

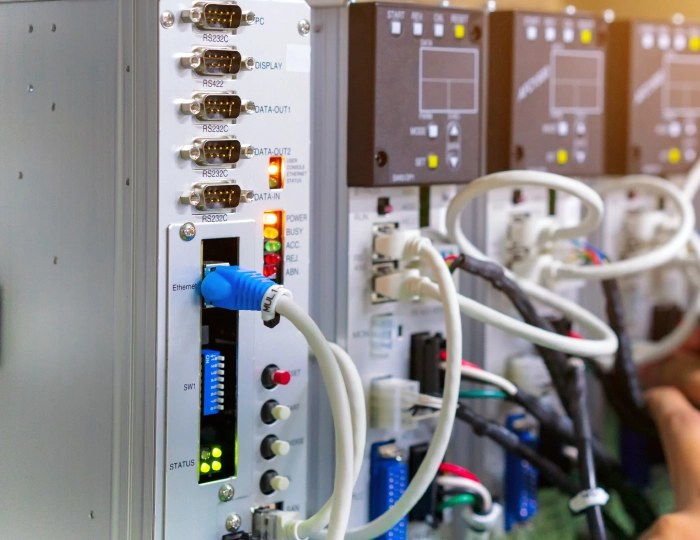

Remote access to devices with serial ports over the Internet using the transparent serial port on the module and its client application. Linking two IP Bridges together creates two remote serial ports which enable bidirectional transparent data flow through the Internet.

The IP Bridge is able to monitor the router connected to it, and restart it with SSH commands or by power feed interruption, or even with the combination of these when it detects a malfunction in its operation. Thereby, it can restore the service automatically, without human intervention.

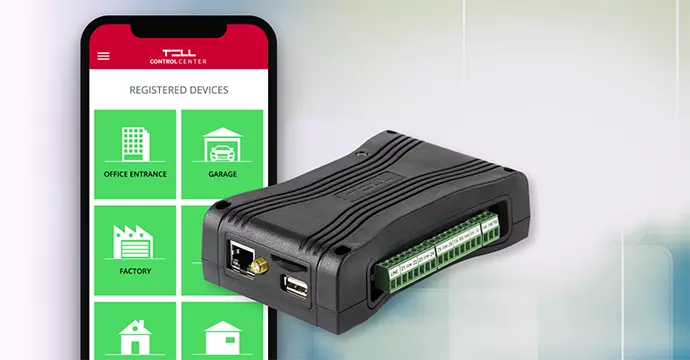

The relay outputs of the IP Bridge can be controlled remotely using the mobile application or a browser. Linking multiple IB Bridges together, they are able to control each other’s outputs by events. The module is also able to forward IP camera pictures triggered by events, which makes it suitable for surveillance tasks.


Simulated phone line output

Reporting to up to 6 IP addresses

6 NO/NC contact inputs and 6 NO relay inputs

Event-triggered notifications: Push message, e-mail, VoIP-based calls and SMS

Accessing IP camera pictures in the mobile application

Assigning IP camera and recorder’s images to events

Transparent serial port support

Router supervision
