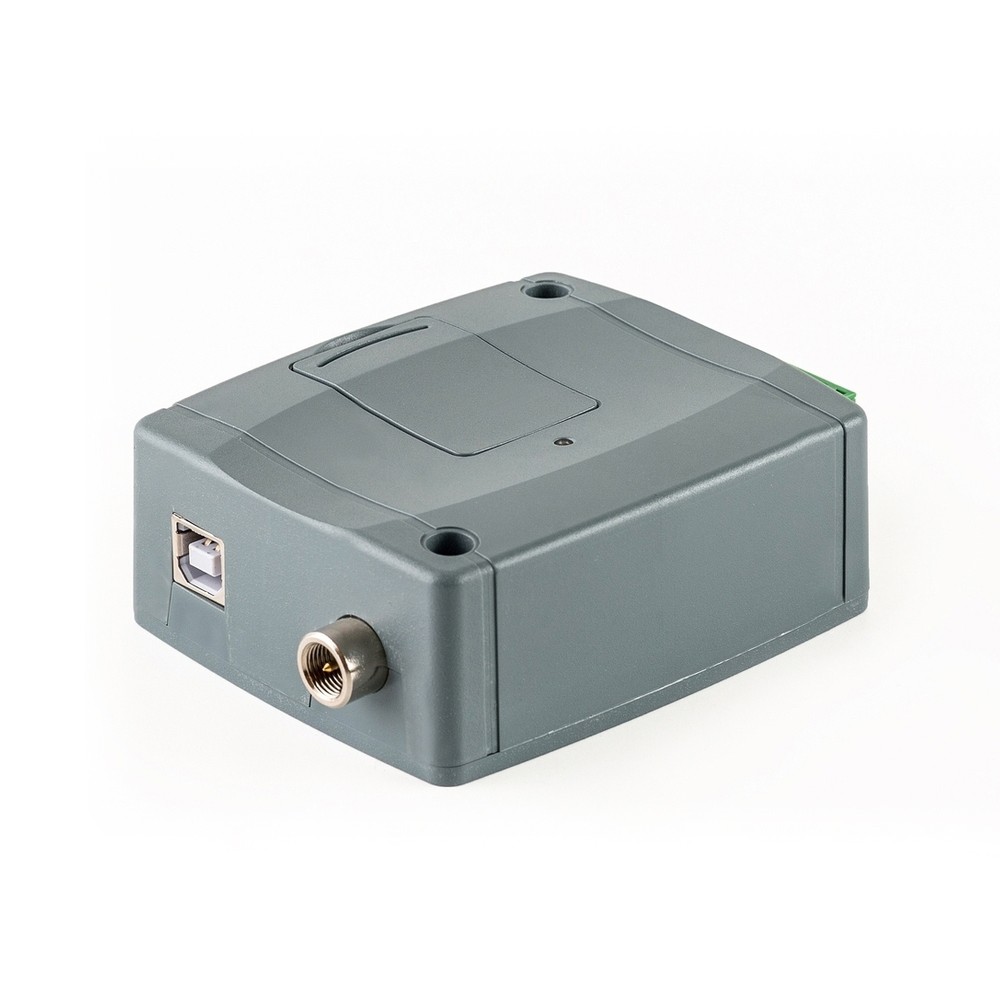

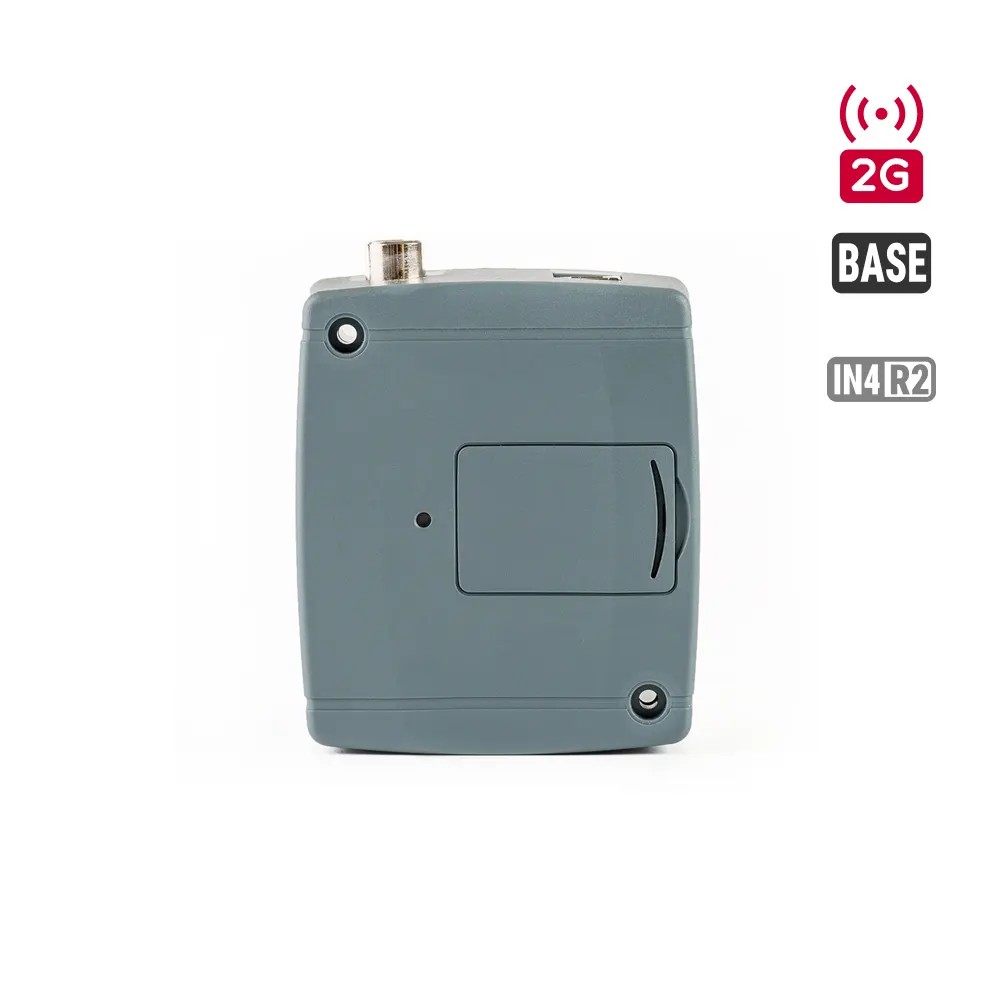

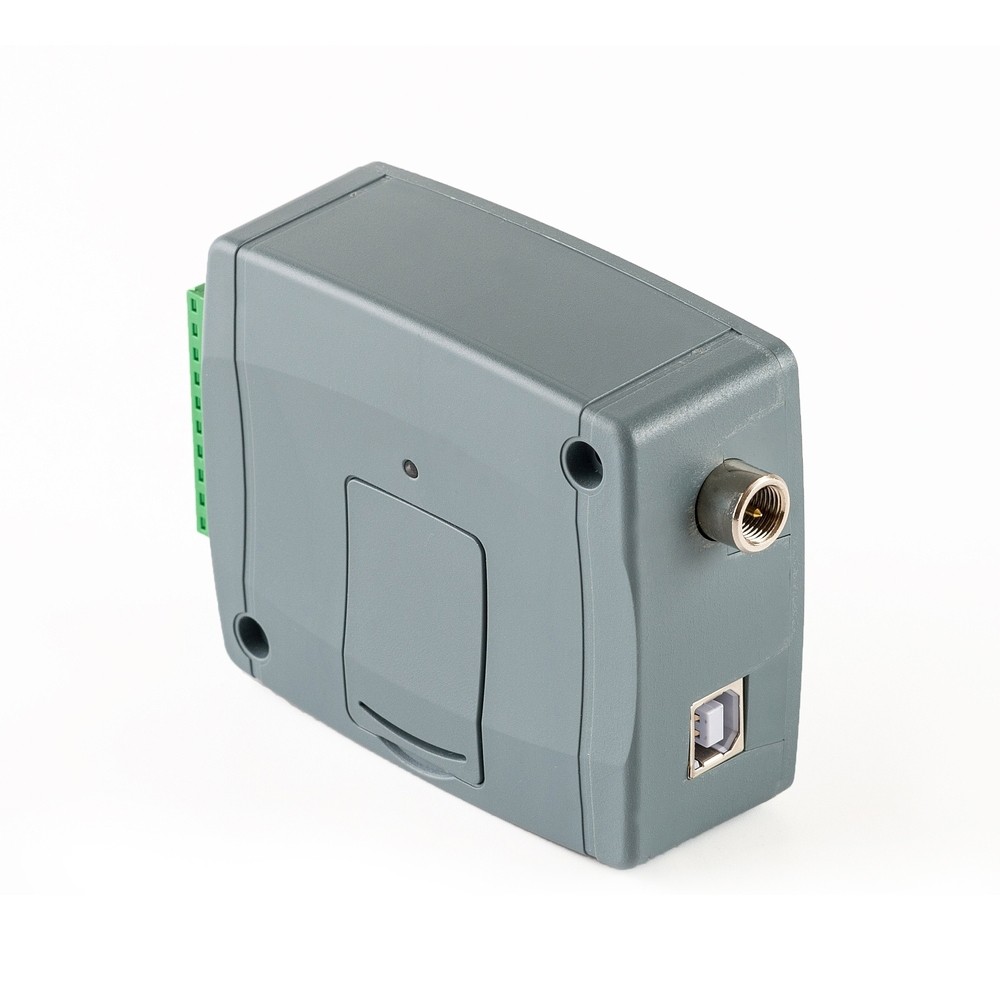

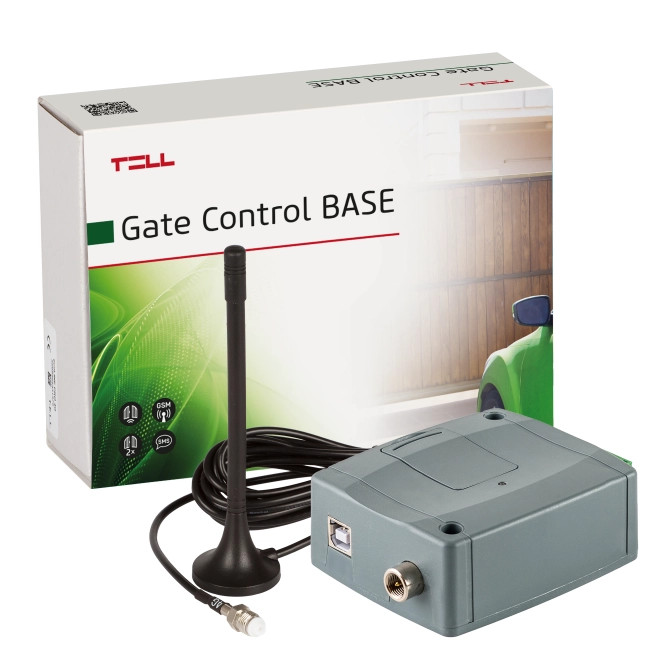

GSM-based remote control for electric gates and barriers
Controllable from mobile phone via call, without any remote control. No radio interference or gate opened by accident. Possibility for adding up to 1000 users with configurable permissions (e.g. restriction of access beyond labour hours). Storing the last 1200 events with identification of users and time control. The event log can even be downloaded remotely (over the Internet), stored electronically or printed. Sends notification in SMS and logs if the gate remains open or if the photocell is blocked (optional). There's no distance limit!
Application area:
- electric gates
- garage doors
- barriers
- parking lots
- parking garages
- multi-storey car parks
- residential parks
- other controls
Installation information:
- The system is specifically designed to control electric gates, garage doors and barriers.
- The device is only suitable for controlling a gate equipped with an electric motor and engine control unit.
- The device requires a mini-SIM card.
- Note to end users: Contact a gate installer to install the device!
Main features:
- Control of relays with free phone call
- Sending SMS upon state change of the 4 contact inputs
- Programmable through USB, SMS or via Internet
- Large event memory
- Supported operating system: Windows 10
Characteristics of Gate Control:
- Control of the opening and closing of automated gates and barriers via free GSM call, using caller identification
- SMS notification on the malfunctions of the gate:
- blocking of the photocell
- forced opening of the barrier housing
- barrier arm or gate jam
- Control (opening / closing) can only be initiated from authorized phone numbers preconfigured in the device or, depending on the settings, from any phone number, without limitations
- Selectable control mode, depending on gate type
Advantages in comparison with radio control:
- Control from mobile phone without any additional unit
- No radio interference, no accidentally opened gate
- Possibility of registering up to 1000 users with permission granting (e.g. entry prohibition out of labor hours)
- Stores last 1200 events with identification of users and opening time
- Event log can be downloaded remotely (via Internet), printed or stored electronically
- Sends notification in SMS and logs if the gate remains open or the photocell is blocked
- There is no distance limit for control
