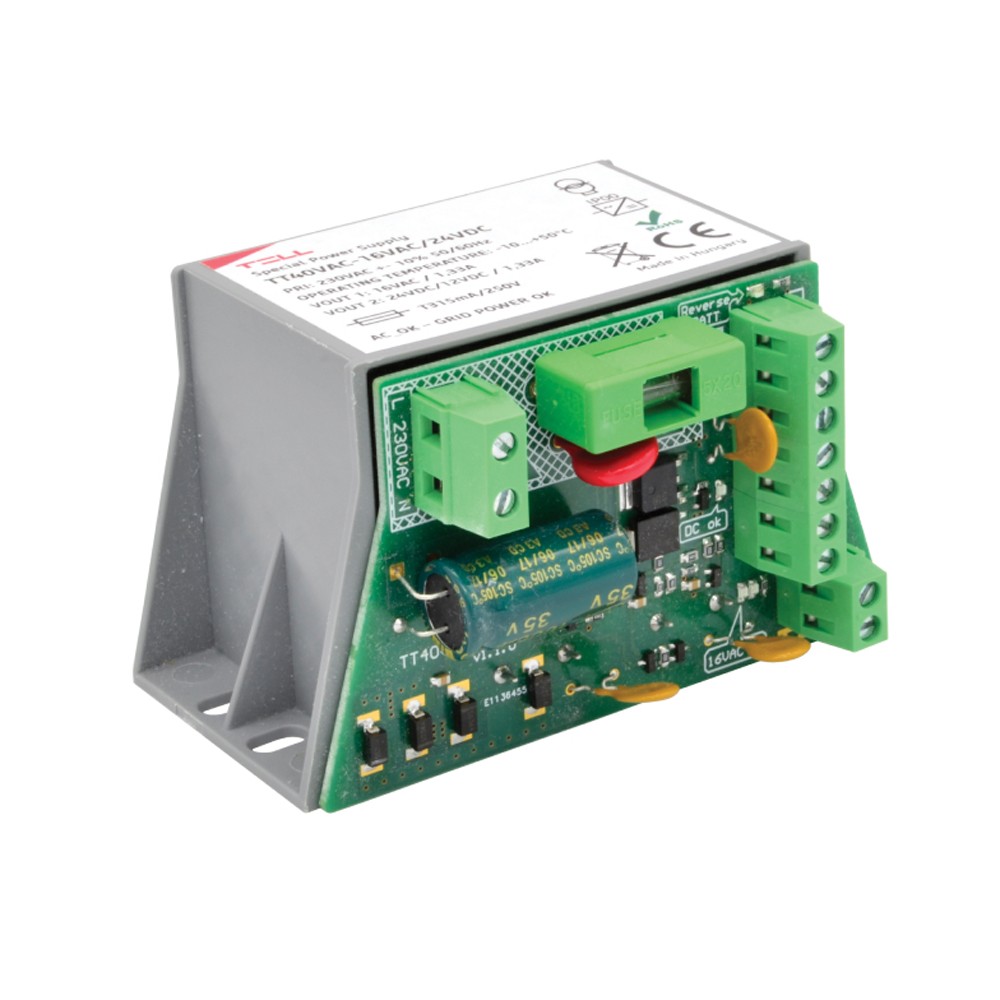

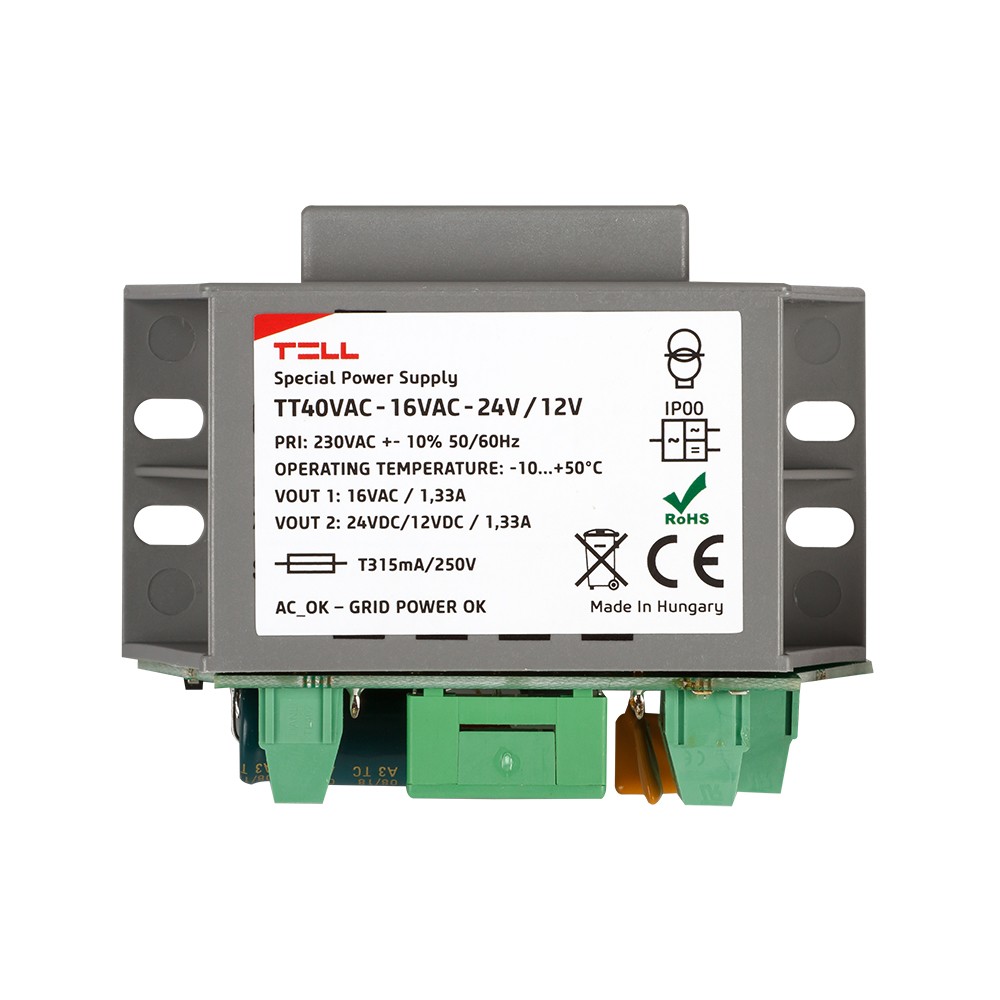

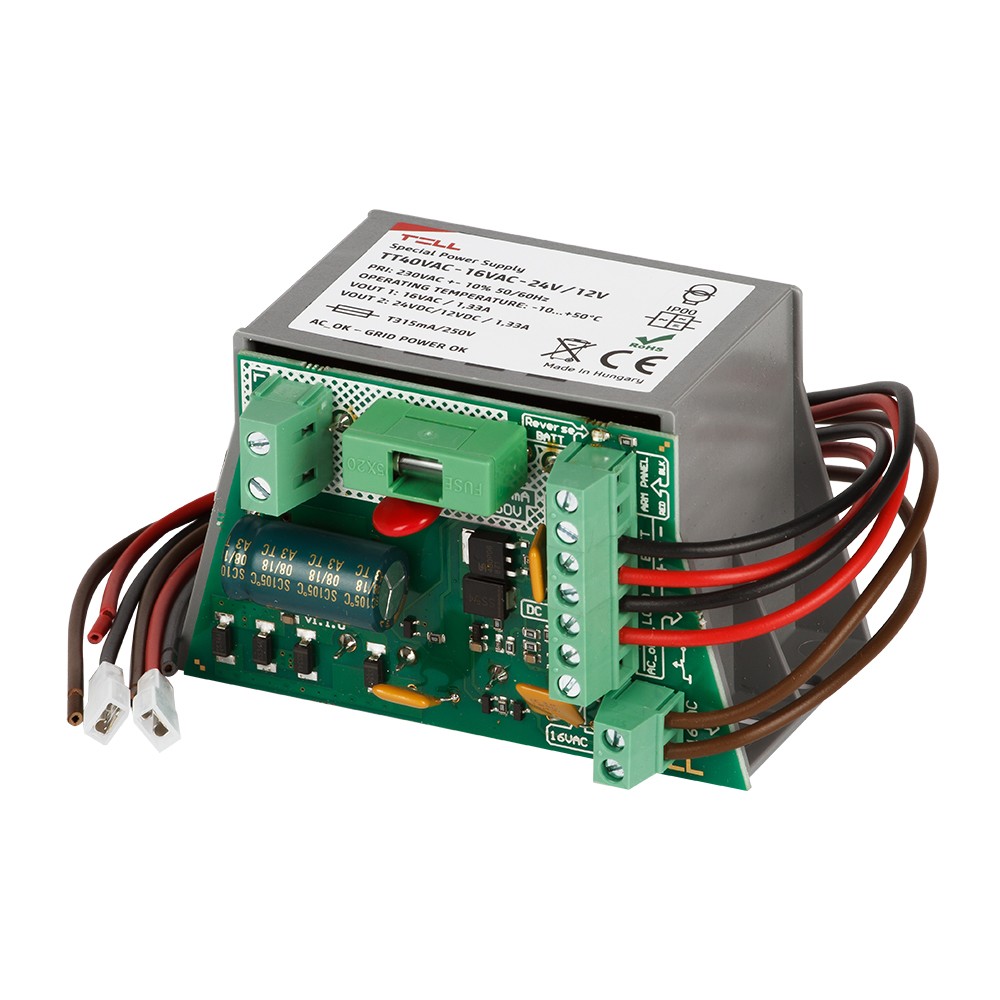

TT40VA-16VAC/24VDC
The TT40VA-16VAC/24VDC power supply was designed to provide uninterruptible power for an alarm system and its communicator.
More details about the product
25 700
Ft
gross:
32 639
Ft
Details
Info
Downloads
Details
It provides a solution for powering the alarm control panel and the communicator from a single power supply, as well as for the limited load capacity of the alarm panel's auxiliary power output. Only a battery is needed to ensure uninterruptible operation, and it also provides effective protection against overload. Transformer power: 40VA.
Info
Technical specification
Operating temperature
:
-10 ºC - +50 ºC
Dimensions
:
95x60x75 mm
Product weight
:
1 kg
Tápegység paraméterek
Input
:
230 VAC +/- 10% 50/60Hz
Output
:
16 VAC and 24 VDC
Maximum load
:
2x1,33 A
Protection class
:
II.
IP rating
:
IP 00
Fuse
:
T315 mA/250 V
Short-circuit protection
:
Polyfuse
Overheating protection
:
Yes
Power supply of alarm systems
:
Yes
Protection agains reverse polarity
:
Polyfuse
Weight:
740 g/db
