TT25VA-12V5

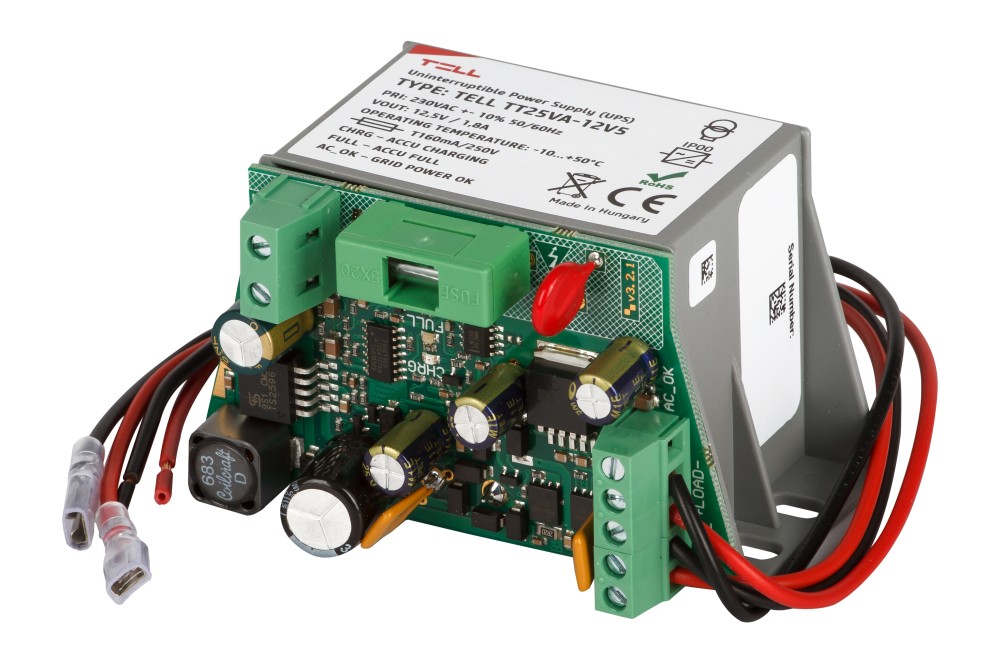

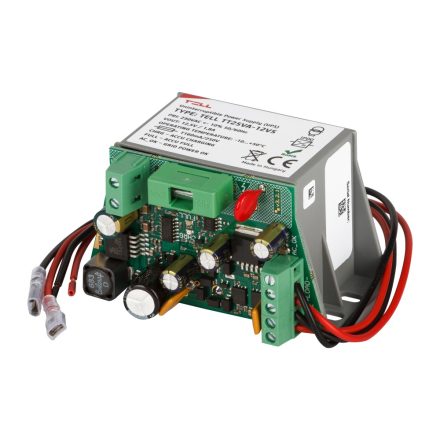

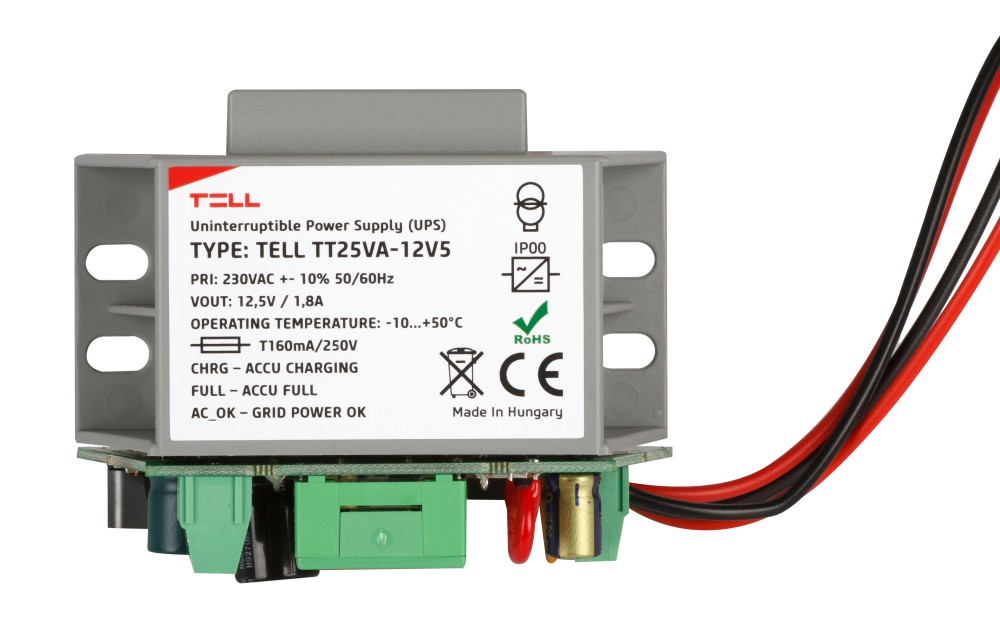

The TT25VA-12V5 power supply with the built-in automatic battery charger provides an uninterruptible and steady voltage to the connected device.

More details about the product

Details

The power supply successfully bypasses mains power outages that are critical to operation of devices, and also provides effective protection against overload. Transformer power: 25VA.

Data

Technical specification

Operating temperature:

-10 ºC - +50 ºC

Dimensions:

88x54x85 mm

Product weight:

770 g

Tápegység paraméterek

Input:

230 VAC +/- 10% 50/60Hz

Output:

12,5VDC +/-1%

Maximum load:

1,8A (60 sec.)

Protection class:

II.

IP rating:

IP 00

Fuse:

T160 mA/250 V

Short-circuit protection:

Polyfuse

Overheating protection:

Yes

Battery charging:

Yes

Battery charging current restriction:

450 mA

Protection agains reverse polarity:

polyfuse and P-MOSFET

CPR:

1415-CPR-104-(C-28/2016)

Weight:

850 g/pcs
