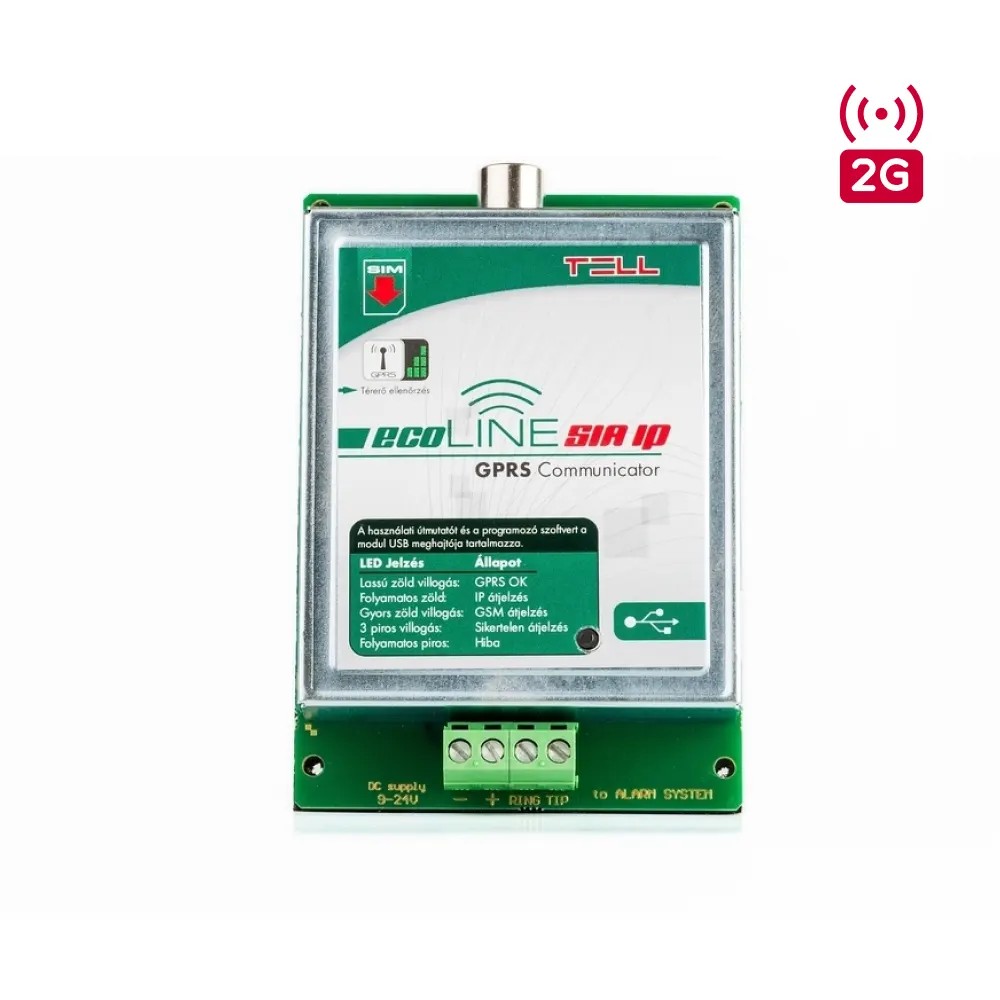

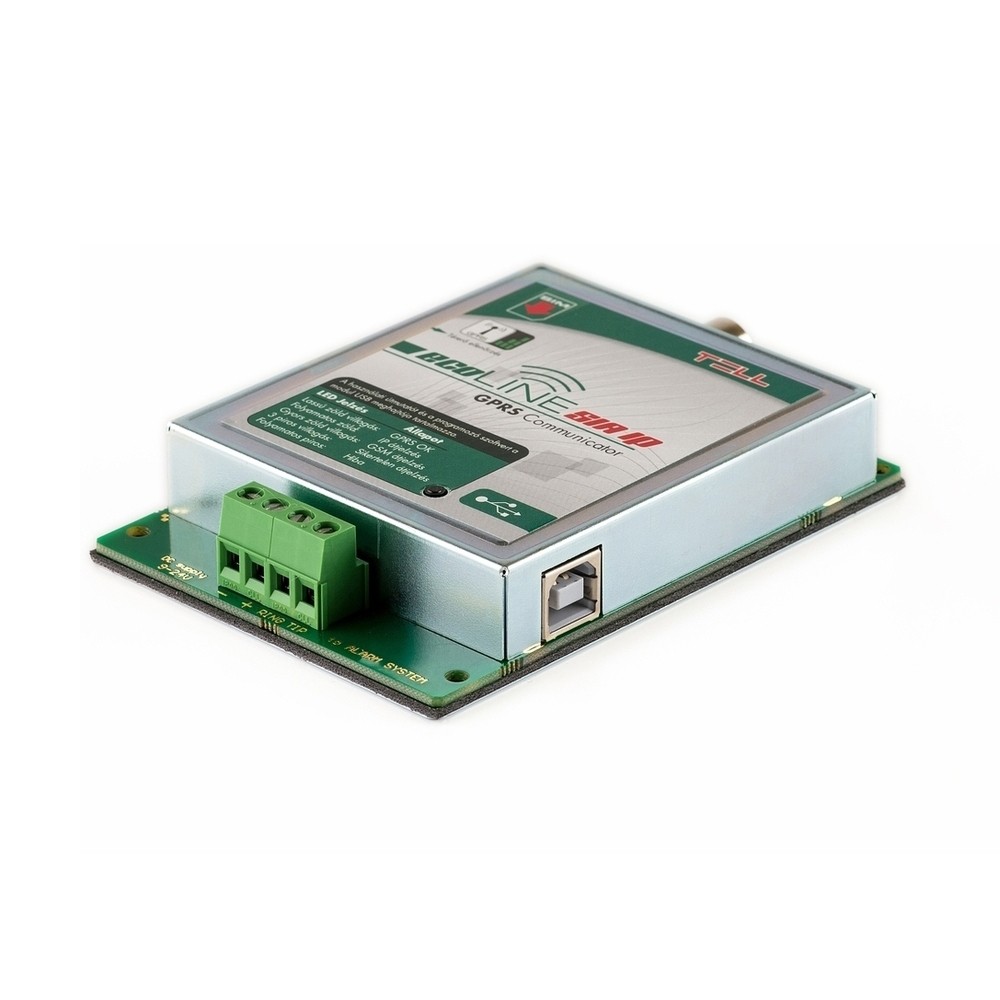

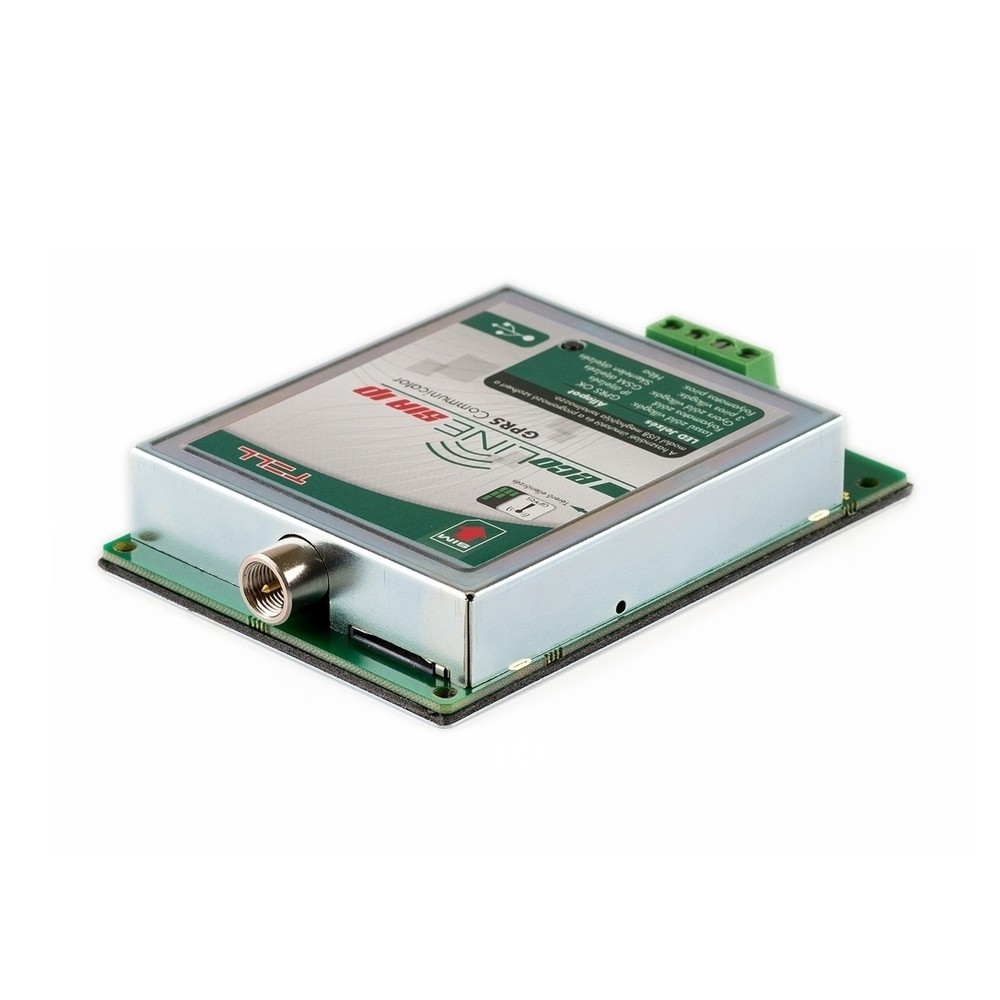

ecoLINE SIA IP - 2G

Main features:

• GPRS/IP, GSM communication
• Direct communication with TELLMon receivers through IP
• Direct communication with SIA DC-09 receivers through IP
• Direct communication with DTMF receivers through backup GSM call
• Supported communication protocols: SIA DC-09, TELLMon
• 1 telephone line output
• Forwards incoming SMS messages
• The programming software is available in the built-in USB storage
• The IP addresses and other settings can be configured by PC and also by SMS
• Supported operating system: Windows 10

Characteristics:

• It can be used with any alarm systems which are able to report to monitoring stations in Contact ID format, using PSTN landline.
• Using the adapter, the alarm control panel’s signals are sent to the monitoring station’s IP receiver over the mobile Internet, using SIA IP protocol based on ANSI/SIA DC-09-2007 standard.
• There is no need for a central server, only an end-point IP receiver with Internet connection is necessary. The adapter is able to communicate with receivers which support the SIA DC-09 or the TELLMon protocol.
• Forwards the signals to 4 IP addresses, depending on the alarm control panel’s settings.
• Contact ID communication over GSM voice call in case of IP error.
• Possibility to send test report to more IP address and continuous monitoring of the connections, for which it evaluates and shows estimated data traffic.
• Simple visual status display and full status information on PC platform.
• By connecting the device to a PC, its internal memory acts as a
• USB drive, on which the programming software and manual are available.
