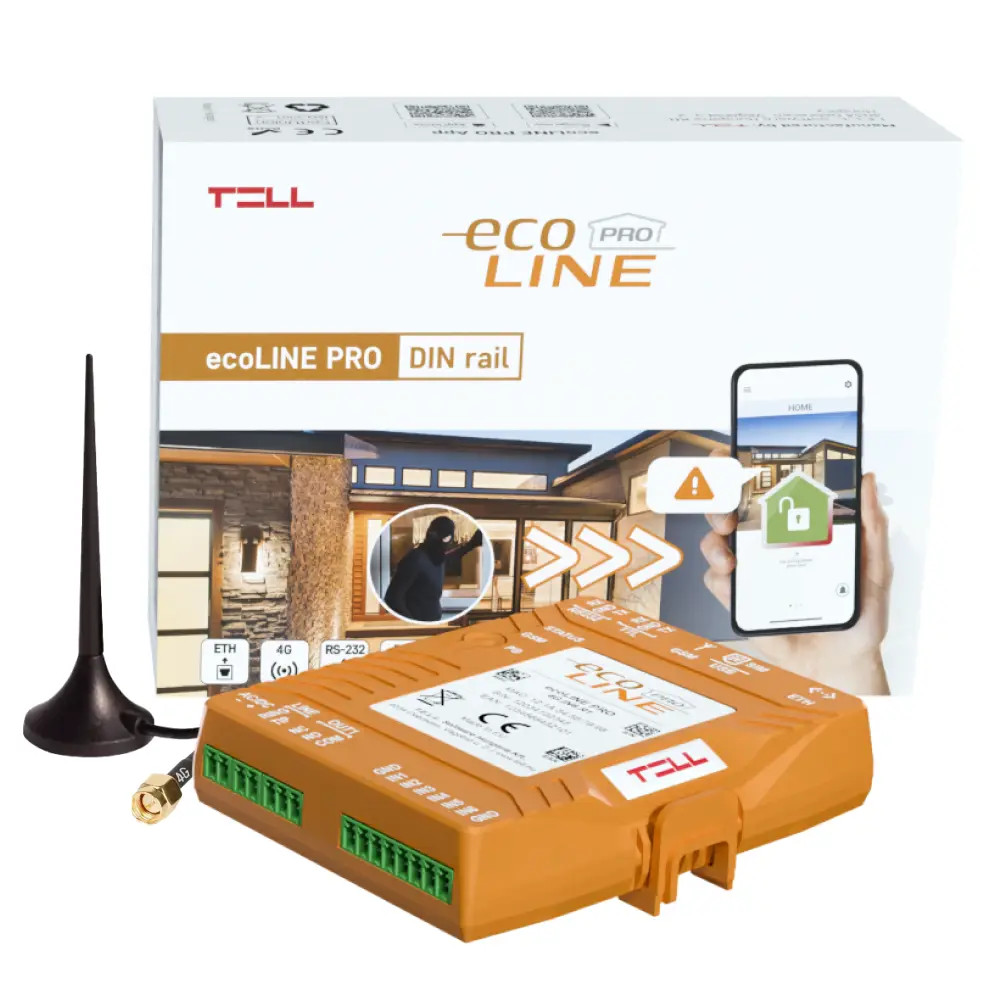

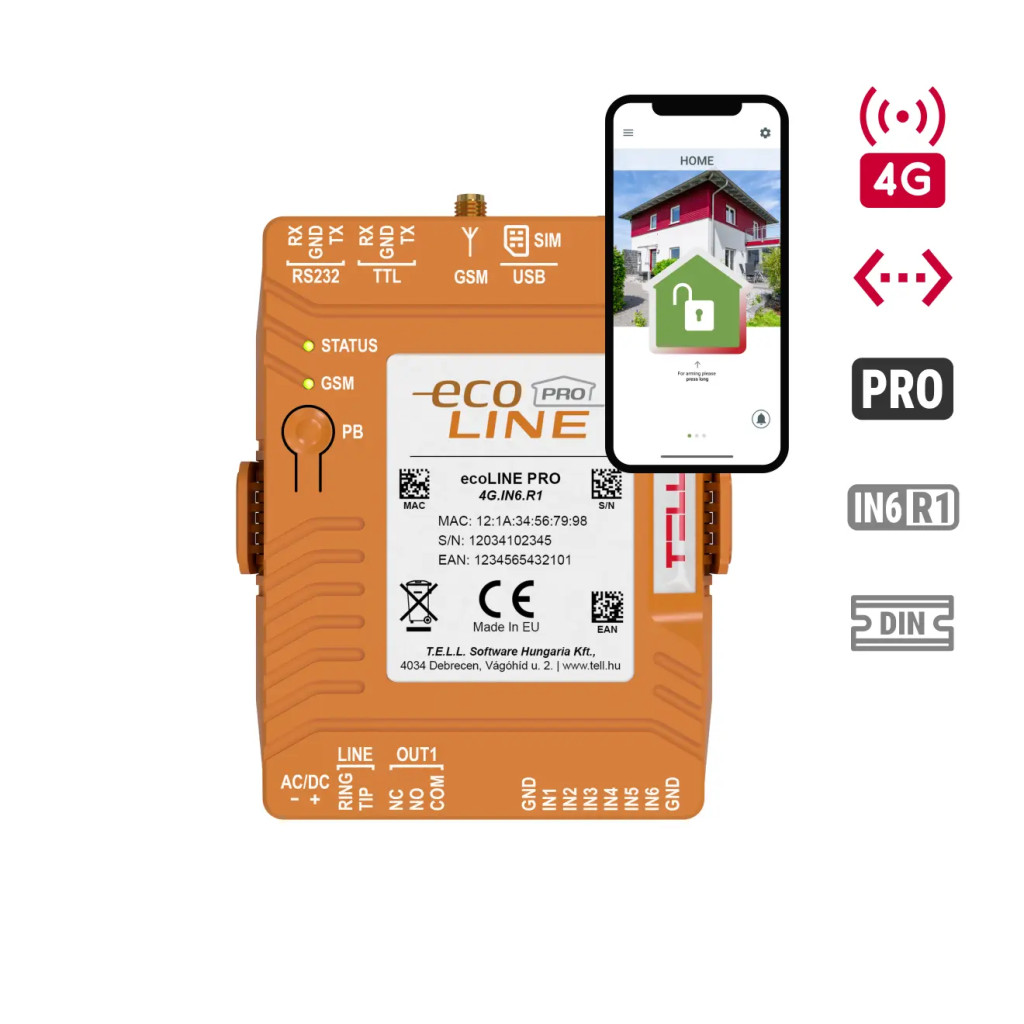

ecoLINE PRO DIN rail - ETH.4G.IN6.R1

Name: ecoLINE PRO DIN rail - ETH.4G.IN6.R1
SKU: KA1041
Price: 78232 HUF

Universal communicator for alarm systems, with reporting option to remote monitoring station over the mobile Internet, and notification sending to users via Push message.

More details about the product

Additional product versions

PRO DIN rail

61 600 Ft
gross: 78 232 Ft

Article No.: KA1041

Details

Main Features:

Communicator with phone line emulator
Comes with a mobile application for users
Programmable through USB-C and IP
Ethernet and 4G internet connectivity
4G/2G communication
Supported communication protocols: SIA DC-09, TELLMon, TEX
6 configurable NO/NC inputs
1 NO/NC/COM relay output, controllable by the mobile app (can be used to e.g. arm/disarm the alarm system)
Reporting to a primary or a backup receiver
Sending Push messages to users about alarm system events
User notifications can be enabled by installer or remote monitoring station
Firmware update through USB and IP
Configurable Contact ID event codes for each input
Transparent serial port support (RS232 and TTL)
Built-in TTL level driver (no need to buy a separate serial port adapter for remote programming of alarm control panels with a TTL port)
Supported operating system: Windows 10
DIN rail compatible

Application area:

Mobile Internet based communicator, that provides solution for alarm systems to report to a remote monitoring station.
Mobile Internet based communicator, that provides solution for users to receive notifications about up to all events of their alarm system.

Info

Identifiers

Additional product versions:

PRO DIN rail

Technical specification

Transmission channel:

4G / 2G

Frequency band:

GSM/GPRS/EDGE: 900/1800 MHz, LTE/FDD: B1/B3/B5/B7/B8/B20

Operating temperature:

-20 ºC - +70 ºC

Supply voltage:

12-30V DC or 12-24V AC

Current consumption (maximum):

500 mA @ 12 VDC

Current consumption (nominal):

130 mA @ 12V DC

Casing:

Plastic

Terminal connector design:

Detachable

Dimensions:

88.4x119x23.1

Package size:

180x131x55 mm

Product weight:

200 g

Weight (with package):

300 g

Inputs

Contact inputs:

Configurable inputs (NO/NC):

Yes

Adjustable input sensitivity:

Yes

Outputs

Relay outputs:

1 (NO/NC/COM)

Output control over the Internet:

Yes

Notifications

Push notification:

Yes

IP-based reporting to monitoring station:

Yes

Supported protocols

SIA IP DC-09 protocol:

Yes

TELLMon protocol:

Yes

TEX protocol:

Yes

Remote monitoring

Monitoring station IP addresses:

Individual reporting to monitoring station:

Yes

Programming

Programming method:

USB C data transmit @ charging cable / IP

Programming software:

Yes

Other functions

Configurable internal Contact ID event codes:

Yes

Security password:

Yes

Event logs / Number of stored events:

Yes / 500

Mobile application:

Yes

Adaptation of alarm control panels to mobile network:

Yes

Phone line emulation:

Yes

NTP server support:

Yes

Transparent serial port support:

Yes

Weight:

200 g/db

Downloads

Mobile Apps

Mobile application is available for this product for the following platforms:
