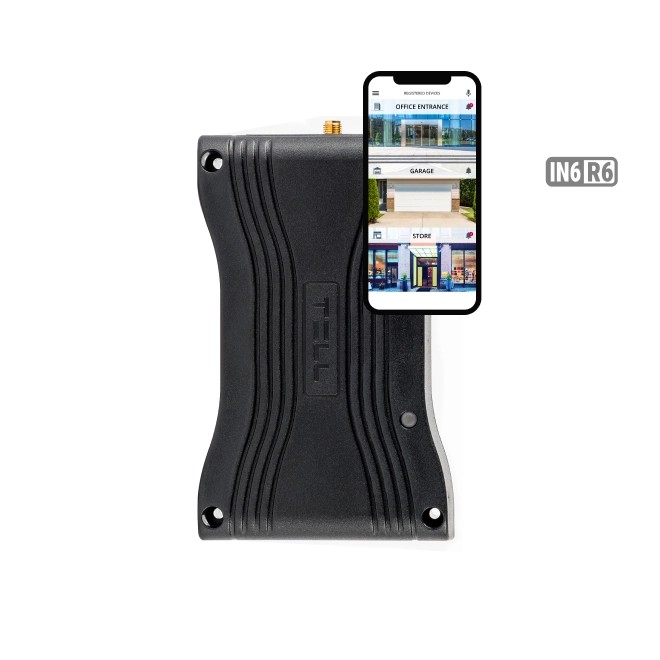

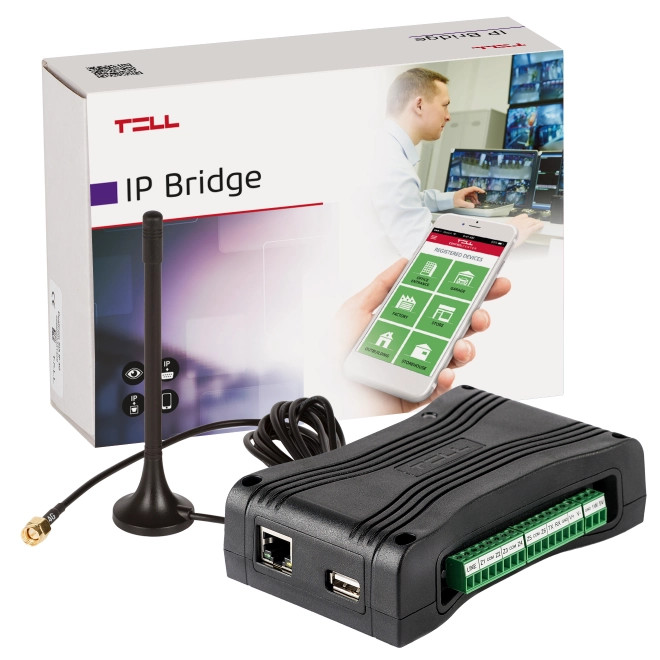

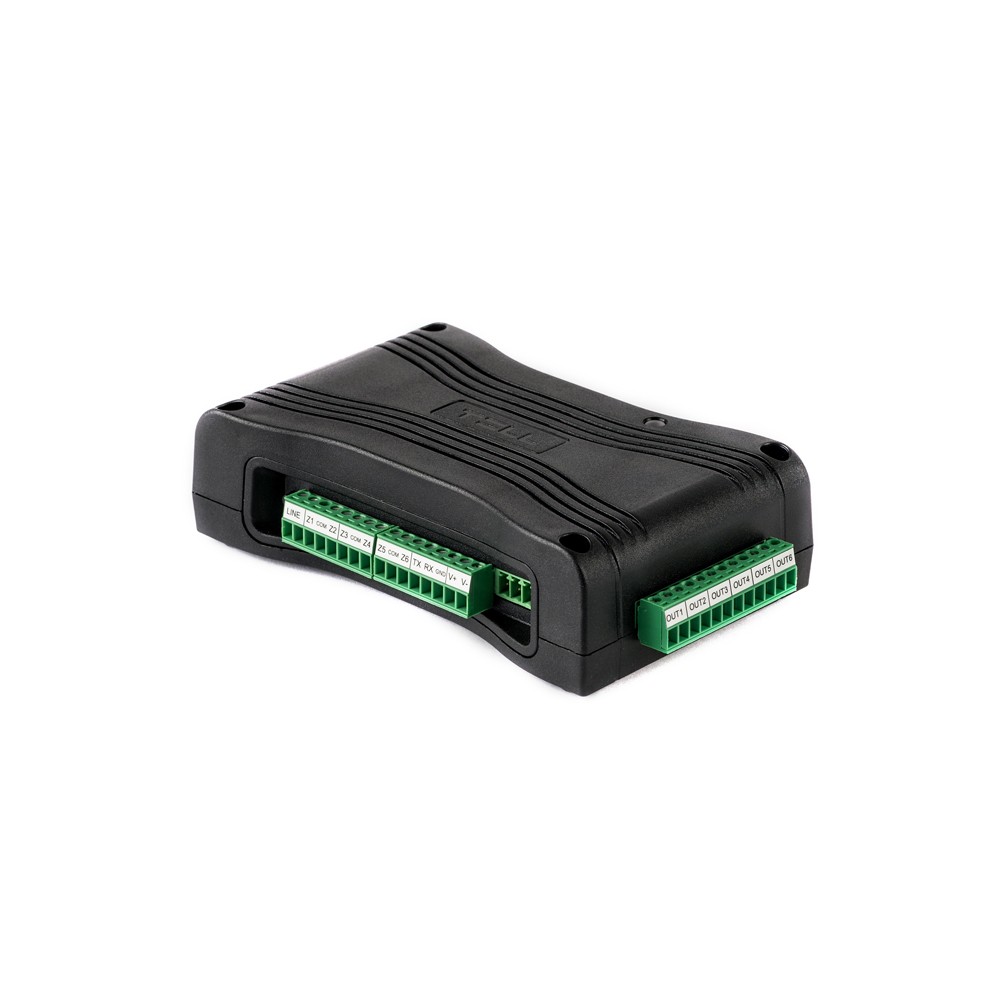

IP Bridge-IN6.R6

Complex communicator, which oﬀers a solution for connecting alarm systems to remote monitoring stations. It can be used as a standalone reporting device or even as an IP-based control device. IP Bridge makes it possible to remotely configure alarm control panels and also enables communication between devices with RS232 interface over the Internet.

More details about the product

Additional product versions

4G.IN6.R6

IN6.R6

61 800 Ft
gross: 78 486 Ft

I want to try it

Details

Main Features:

Simulated phone line output
6 NO/NC (configurable) contact inputs
6 NO (open in default) relay outputs
1 RS232 input
1 Ethernet connector
1 USB host
IP communication based on wired internet
Supported communication protocols: SIA DC-09, TELLMon, TEX
Transparent serial port support
E-mail sending
Radius server support
NTP server support
HTTP/HTTPS protocol support
Built-in web server for configuration
Supported operating system: Windows 10

Application Area:

Connecting alarm system with monitoring stations
Independent communicator
IP-based control module
Remote programming of alarm control panels
Communication between devices with RS232 interface
Using in building engineering (HVAC)

Info

Identifiers

Additional product versions:

IN6.R6

Technical specification

Transmission channel:

LAN

Operating temperature:

-20 ºC - +70 ºC

Supply voltage:

12-24 VDC

Current consumption (maximum):

700 mA @ 12 VDC

Current consumption (nominal):

320 mA @ 12 VDC

Casing:

Plastic

Dimensions:

131x82x37

Package size:

180x131x55 mm

Product weight:

178 g

Weight (with package):

290 g

Inputs

Contact inputs:

EOL inputs:

Yes

Configurable inputs (NO/NC):

Yes

Adjustable input sensitivity:

Yes

Outputs

Relay outputs:

Notifications

E-mail sending:

Yes

Push notification:

Yes

IP-based reporting to monitoring station:

Yes

Supported protocols

SIA IP DC-09 protocol:

Yes

TELLMon protocol:

Yes

TEX protocol:

Yes

Remote monitoring

Monitoring station IP addresses:

Individual reporting to monitoring station:

Yes

Programming

Programming method:

Other functions

Configurable internal Contact ID event codes:

Yes

Security password:

Yes

Event logs / Number of stored events:

Yes / 500

Mobile application:

Yes

Individual email sending with predefinable message:

Yes

Periodic test report:

Yes

Filtering of Contact ID event codes:

Yes

Alarm restriction:

Yes

Phone line emulation:

Yes

NTP server support:

Yes

RADIUS server support:

Yes

Transparent serial port support:

Yes

Weight:

290 g/db
