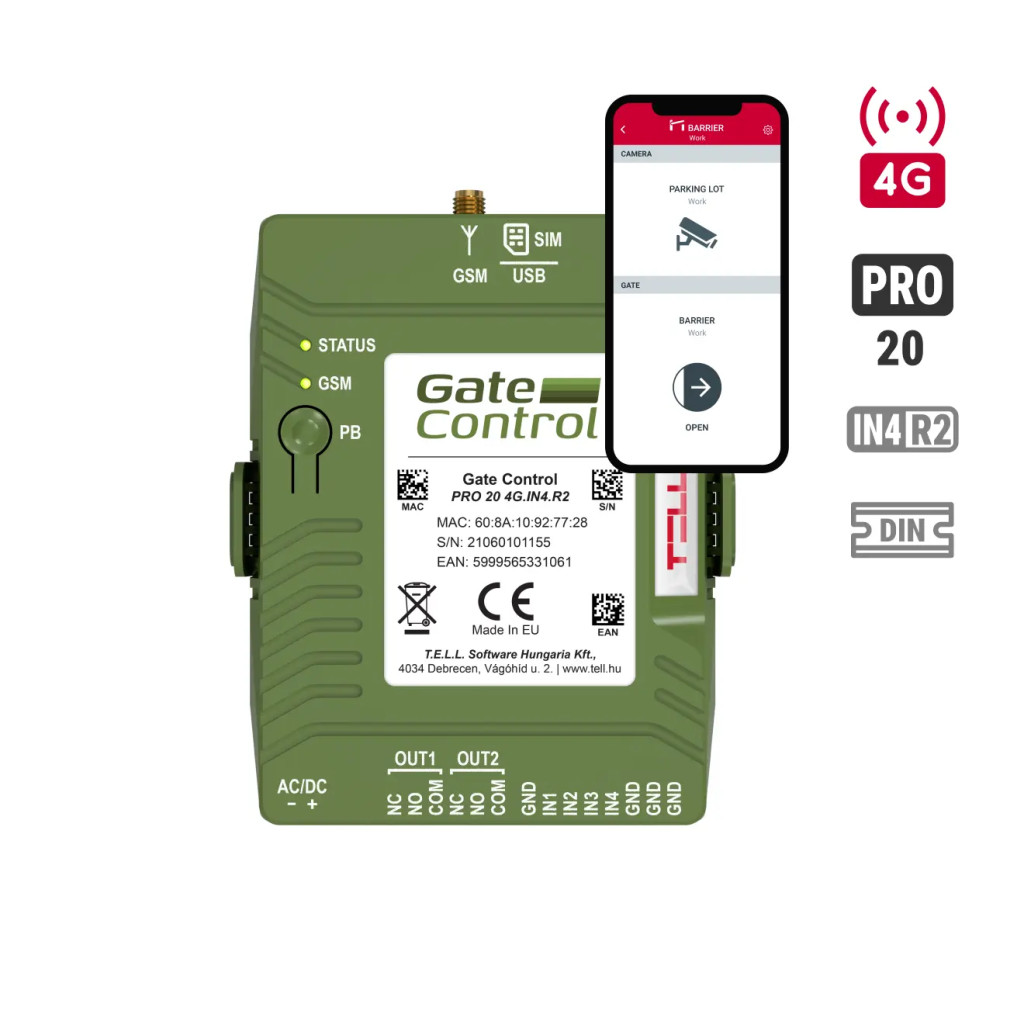

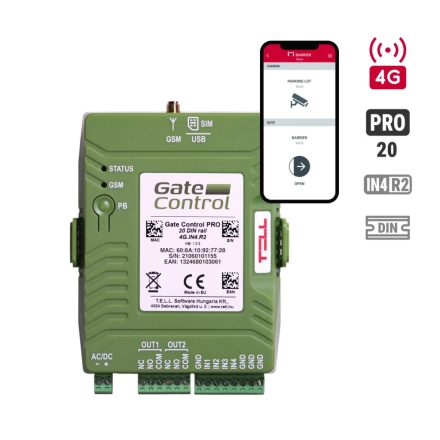

Gate Control PRO 20 DIN rail - 4G.IN4.R2
Gate Control PRO 20 DIN rail is a professional 4G gate controller and automation module designed to control electric gates, barriers, garage doors, and other relay-controlled devices using a mobile application or a phone call.
The device supports up to 20 users and is designed for DIN rail mounting. It features 4 configurable inputs, 2 relay outputs, event logging, scheduled control, and user access management.
Web-based programming with Webremoter – no installation, on Mac too
With the Webremoter web-based programming software you can perform the most important settings from any browser – on Windows, macOS and Linux alike. No software installation, no platform limitation.
Learn more about Webremoter → Register for Webremoter →
API integration – connect it to third-party software
The Gate Control PRO device offers new possibilities for third-party software developers. You can integrate these devices simply and efficiently using our API connection. For more information, see our API documentation or contact our technical support colleagues.
API documentation →
Professional 4G gate opener with mobile app and call-based control
The Gate Control PRO 20 DIN rail is designed for gate and barrier systems where a simple opener module is not enough. The device not only controls the gate, but also manages user permissions, logs events, sends notifications about important status changes, and can be programmed remotely.
It is an ideal choice for smaller residential buildings, company sites, offices, warehouses, car parks, and any location where secure, convenient and transparent gate access needs to be provided for up to 20 users.
Why choose the Gate Control PRO 20 module?
Gate opening with the mobile app
The gate or barrier can also be controlled over the internet using the Gate Control PRO mobile app. This is a convenient solution if users prefer to enter with their phone rather than a remote control.
Opening with a phone call
The system also works with caller ID identification. When a call is initiated from an authorised phone number, the module performs the control operation, and the call does not have to be answered.
You can read more about the call answering function in the following article:
>> Phone-based gate opening: new call answering function on Gate Control devices
Management of 20 users
The PRO 20 version manages up to 20 users, which makes it a good choice for smaller systems, company gates, smaller car parks, or residential building applications.
Permissions and access periods
It can be configured per user who may control which output, and when. This way access can not only be granted, but also precisely regulated.
2 relay outputs
The two relay outputs allow the control of one or two gates or barriers, as well as partial and full opening functions.
4 configurable inputs
The inputs can be used to receive signals from a limit switch, doorbell, technical fault, sabotage or other contact signals.
Who do we recommend it for?
The Gate Control PRO 20 DIN rail is designed for those looking for a reliable, professional gate opening solution for smaller or medium access control needs.
- smaller residential buildings and housing communities,
- company sites and office buildings,
- warehouses and industrial gates,
- control of car parks and barriers,
- garage doors,
- apartments and guest entrances,
- locations where permission management and event logging are important.
The most important functions of the Gate Control PRO 20
CONTROL

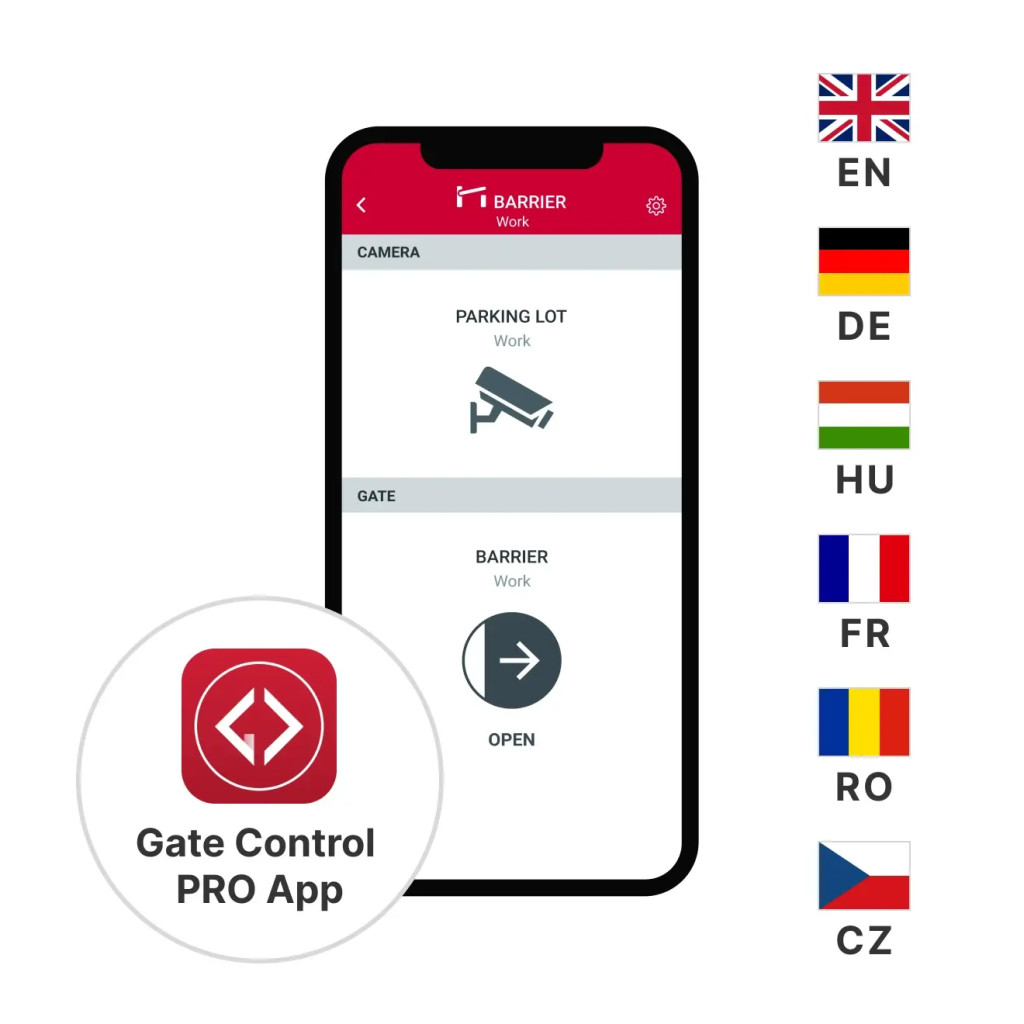

Gate opening with the mobile app
With the Gate Control PRO mobile app, the user can easily control the gate or barrier assigned to them. The mobile app is particularly useful in places where transparent operation, permission management, and the ability for users to avoid physical remote controls are important.
When the mobile app is used, the system identifies the user based on the mobile device identifier. This is a more secure and more manageable solution than when every entry is tied to a traditional remote control.
Gate opening with a phone call
The Gate Control PRO can also control the gate based on caller ID identification. The authorised user calls the phone number of the SIM card in the module, the system recognises the calling number, and then executes the configured control operation.
This solution is simple, fast and convenient, especially for users who do not want to use a separate app, or for whom call-based opening is the usual mode of operation.
5 control modes for wide compatibility
The Gate Control PRO offers 5 different control modes so that it can be used with as many types of gate automation and control electronics as possible. The module can be used to control one or two gates, for partial and full opening, and also for systems where the opening and closing commands are sent on separate inputs.
- control of one gate,
- control of two gates,
- management of partial and full opening,
- opening and closing with a single control command,
- opening and closing with separate control commands.
USERS AND ACCESS
Permission management for up to 20 users
In the Gate Control PRO 20 version, up to 20 users can be registered. Separate permissions and access periods can be assigned to each user. This means that it is possible to specify not only who can open the gate, but also when and under what conditions they may do so.
This is particularly useful for company gates, residential buildings, tenant entries, or locations where temporary access needs to be provided to maintenance staff, suppliers or external partners.
Access schemes and scheduled control
Up to 50 configurable access schemes can be created in the system. With these, it is possible to define precisely on which days and during which periods a given user may use the gate or barrier.
With the help of scheduled control, automated operation can also be set up. This is useful, for example, when a gate needs to be open during a specific period, or when a regular operating cycle needs to be controlled.
FEEDBACK AND SECURITY
More accurate status monitoring with a limit switch
One of the important advantages of the Gate Control PRO is that a limit switch can also be connected to it. This way the system not only knows that a control command has been received, but is also able to monitor whether the gate has actually opened or closed.
By using a limit switch, the system can also send a Push or SMS notification if the gate does not open or close properly. This is no small extra. This is exactly the difference that makes a professional system not the same as a cheap module that “somehow will just work”.
Notifications by Push message, SMS, call or email
Notifications can be assigned to the status changes of the 4 contact inputs. The system is able to send an SMS, a call or an email, and for certain functions it can also signal with a Push message on the users' mobile devices.
The inputs can be used, for example, for a doorbell, for relaying a technical fault, for a sabotage signal, for a limit switch, or for receiving other contact signals.
Event log for transparent operation
The Gate Control PRO stores the last 1000 events in the event memory. This helps to look up who controlled the gate, when and in what way, as well as what system events occurred.
The event log is particularly useful for residential buildings, company sites, car parks, and any location where it may be important to check access events afterwards.
Emergency SMS control
In an emergency, the module can also be controlled with an SMS command. With this function, the gate can be kept continuously open and then closed again with a separate command. This can be important in situations where quick intervention is needed, for example when providing access for the fire brigade, remote monitoring, or operators.
INSTALLATION AND OPERATION
How does the Gate Control PRO work?
A SIM card is inserted into the module, providing mobile internet, call or SMS service according to the services to be used. Users can control the gate with the mobile app or with a phone call. The system checks the permission, performs the control operation, and then records the event in the event log.
- The installer connects the module to the control electronics of the gate or barrier.
- They add the authorised users to the system.
- They configure the outputs, inputs, access schemes and notifications.
- Users can open the gate with the mobile app or with a call.
- The module logs the events and sends a notification when necessary.
Remote programming and easier maintenance
The Gate Control PRO can be programmed via USB, over the internet and with the mobile app. This significantly simplifies installation and operation, as many settings can be performed remotely, so there is no need for an on-site visit for every modification.
Remote access is particularly useful when managing users, modifying permissions, checking event logs, or fine-tuning the system.
The device also contains a factory-set hidden superadministrator access, which enables remote programming right from the initial commissioning. For greater security, this access can later be modified or disabled as required.
Gate Control PRO 20 or PRO 1000?
The Gate Control PRO 20 is a good choice if gate opening permissions need to be provided for up to 20 users. If you are looking for a solution for a larger residential building, industrial site, logistics centre or larger car park, it is worth choosing the Gate Control PRO 1000 version.
Summary
The Gate Control PRO 20 DIN rail is a good choice for any location where professional, 4G-based gate opening, mobile app control, call-based opening and transparent permission management are needed. Thanks to its 20-user capacity, two relay outputs, four configurable inputs, event log, limit switch management and remote programmability, the module offers far more than a traditional GSM gate opener.
Frequently asked questions
What can the Gate Control PRO 20 DIN rail be used for?
It can be used to control electric gates, barriers, garage doors and other relay-controlled devices with the mobile app or with a phone call.
How many users does the Gate Control PRO 20 manage?
The Gate Control PRO 20 is capable of managing up to 20 users.
Can the gate be opened with a phone call?
Yes. The system is able to control the gate based on caller ID identification, if the caller's phone number is registered as an authorised user in the module.
Does it also work with the mobile app?
Yes. The gate or barrier can also be controlled over the internet with the Gate Control PRO mobile app.
Can it control two gates as well?
Yes. Thanks to the two relay outputs, the module is suitable for controlling one or two gates, as well as for managing partial and full opening functions.
Does it require a SIM card?
Yes, a SIM card is required for the module to operate. Depending on the functions you want to use, mobile internet, call or SMS service may be needed.
Can it be programmed remotely?
Yes. The Gate Control PRO can be programmed via USB, over the internet and with the mobile app. The device also contains a factory-set hidden superadministrator access, which makes remote programming easier from the initial commissioning.
Can it send notifications about faults or gate status?
Yes. Notifications can be assigned to the inputs, and the system can signal by Push message, SMS, call or email, depending on the settings.
Why is the limit switch important?
With a limit switch, the system is able to monitor the actual open or closed status of the gate. This provides more accurate feedback and more reliable operation.
When is it better to choose the PRO 1000 version?
When more than 20 users need to be managed, for example in the case of a larger residential building, industrial site, logistics centre or larger car park.
Articles and case studies
Would you like to learn more about the possibilities of the Gate Control PRO? Browse our professional articles and case studies, where we present the device's functions, practical use cases, installation tips and real-world application examples in detail. This content helps you get the most out of the system, whether it is a new installation or the modernisation of existing gate automation.
Read more →
Identifiers
Additional product versions:
4G.IN4.R2
Technical specification
Transmission channel:
4G/VoLTE/2G/GSM
Frequency band:
GSM/GPRS/EDGE: 900/1800 MHz, LTE/FDD: B1/B3/B5/B7/B8/B20
Operating temperature:
-20 ºC - +70 ºC
Supply voltage:
12-30V DC or 12-24V AC
Current consumption (maximum):
500 mA @ 12V DC
Current consumption (nominal):
130 mA @ 12V DC
Casing:
Plastic
Terminal connector design:
Detachable
Dimensions:
88.4x119x23.1
Package size:
180x131x55 mm
Product weight:
180 g
Weight (with package):
350 g
Inputs
Contact inputs:
4
Configurable inputs (NO/NC):
Yes
Adjustable input sensitivity:
Yes
Outputs
Relay outputs:
2 (NO/NC/COM)
Output control through free GSM call:
Yes
Notifications
GSM voice call:
Yes
SMS sending:
Yes
E-mail sending:
Yes
Push notification:
Yes
Users
Maximal number of users:
20
User phone numbers for forwarding incoming SMS messages:
1
User phone numbers for reporting:
4
User phone numbers for output control:
20 / Unlimited
Possibility to allow control with hidden phone number:
Yes
Control with caller identification:
Yes
Programming
Programming method:
USB C data transmit @ charging cable / IP
Programming software:
Yes
Web-based programming:
Other functions
Built-in internal clock:
Yes
Security password:
Yes
Event logs / Number of stored events:
Yes / 1000
Caller identification:
Yes
Mobile application:
Yes
Individual email sending with predefinable message:
Yes
Individual SMS sending to user phone numbers with predefinable message:
Yes
Periodic test report:
Yes
IP camera support:
Yes
Weight:
350 g/db
