Gate Control PRO 1000-2G.IN4.R2

GSM-based remote control for electric gates and barriers

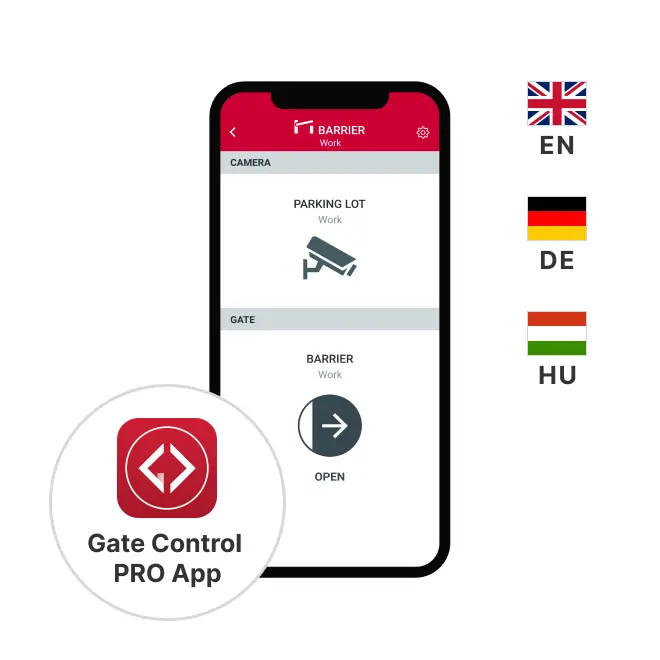

Forget about the programming of remote-control gate openers! Handling your gate and barrier has never been as easy as it is with the Gate Control PRO mobile app. Time is money. Use your mobile phone to handle your doorbell, should you be on your way home, in a meeting or anywhere else!

Application area:

electric gates
garage doors
barriers
parking lots
parking garages
multi-storey car parks
residential parks
other controls

Details

Additional product versions

Main features:

Control of electric gates and barriers via mobile phone, mobile application or via GSM call
Option for controlling two different gates or barriers with the same device
1000-user variant
Notification sending if the gate or barrier fails to open or close
Showing the open/closed status of the gates or barriers in the mobile application
Status reporting of 4 contact inputs via e-mail, SMS or call
Transmits doorbell activity to mobile phone
IP camera support, makes camera pictures available in the mobile application
Configurable user permissions and entry periods
Configurable scheduled controls
Event log and report sending in e-mail
Supported operating system: Windows 10

Product recommendation:

IP Camera detector (free download)

Info

Identifiers

Additional product versions:

2G.IN4.R2

Technical specification

Transmission channel:

2G / GSM

Frequency band:

850/900/1800/1900 MHz @GSM/GPRS

Operating temperature:

-20 ºC - +70 ºC

Supply voltage:

12-30 VDC or 12-16,5 VAC

Current consumption (maximum):

500 mA @ 12 VDC

Current consumption (nominal):

120 mA @ 12 VDC

Casing:

Plastic

Terminal connector design:

Connectable

Dimensions:

84x72x32 mm

Package size:

180x131x55 mm

Product weight:

200 g

Weight (with package):

380 g

Inputs

Contact inputs:

Configurable inputs (NO/NC):

Yes

Adjustable input sensitivity:

Yes

Outputs

Relay outputs:

Output control through free GSM call:

Yes

Notifications

GSM voice call:

Yes

SMS sending:

Yes

E-mail sending:

Yes

Push notification:

Yes

Users

Maximal number of users:

1 000

User phone numbers for forwarding incoming SMS messages:

User phone numbers for reporting:

User phone numbers for output control:

1000 / Unlimited

Possibility to allow control with hidden phone number:

Yes

Control with caller identification:

Yes

Programming

Programming method:

USB / IP

Programming software:

Yes

Other functions

Built-in internal clock:

Yes

Security password:

Yes

Event logs / Number of stored events:

Yes / 1000

Caller identification:

Yes

Mobile application:

Yes

Individual email sending with predefinable message:

Yes

Individual SMS sending to user phone numbers with predefinable message:

Yes

Periodic test report:

Yes

IP camera support:

Yes

Weight:

380 g/db

Downloads

Videos

For updates, product information and podcast visit us at youtube.com/tellsoftware.

Mobile Apps

Mobile application is available for this product for the following platforms:
