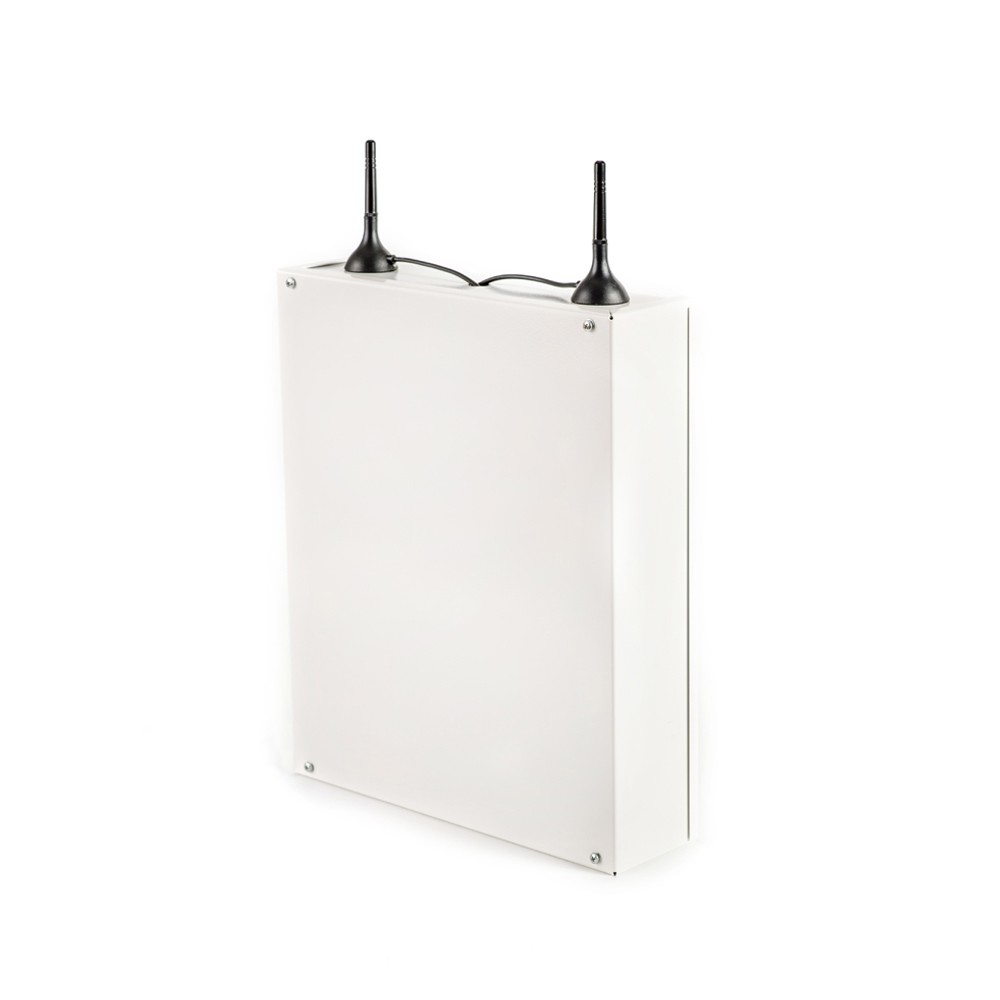

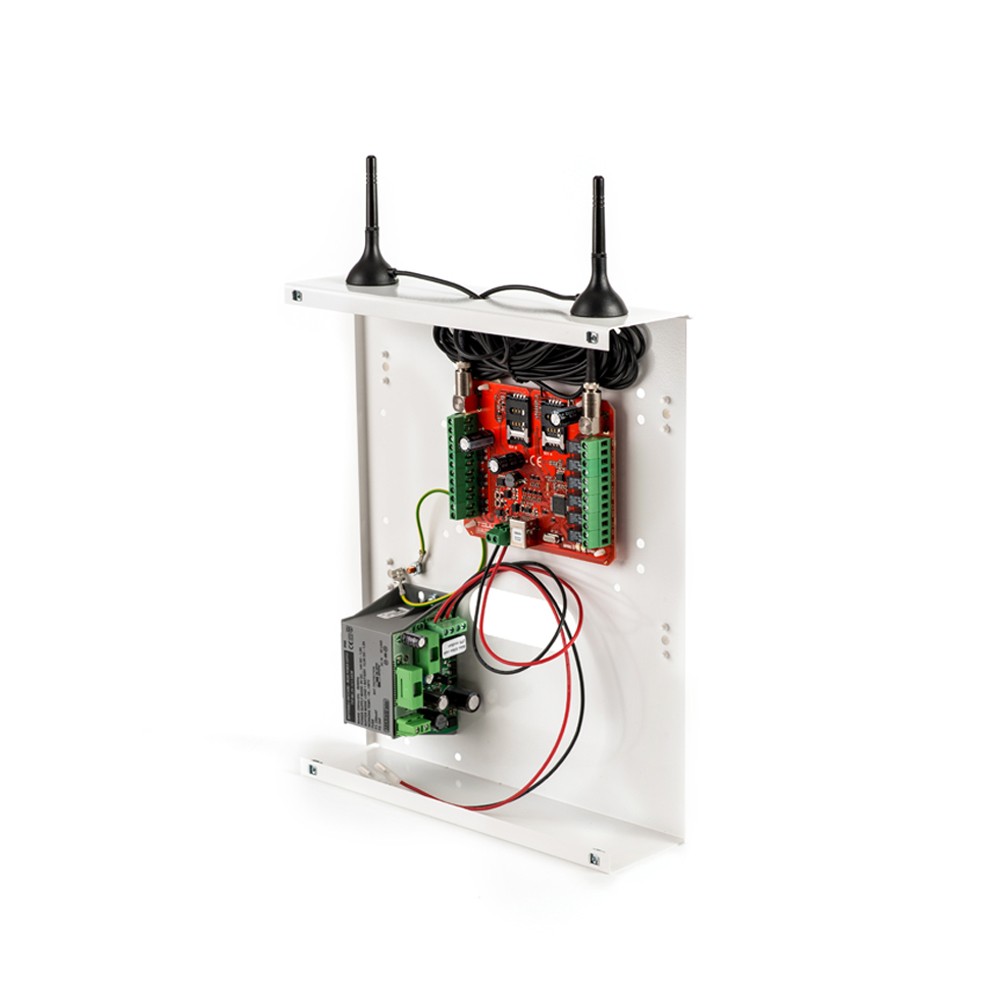

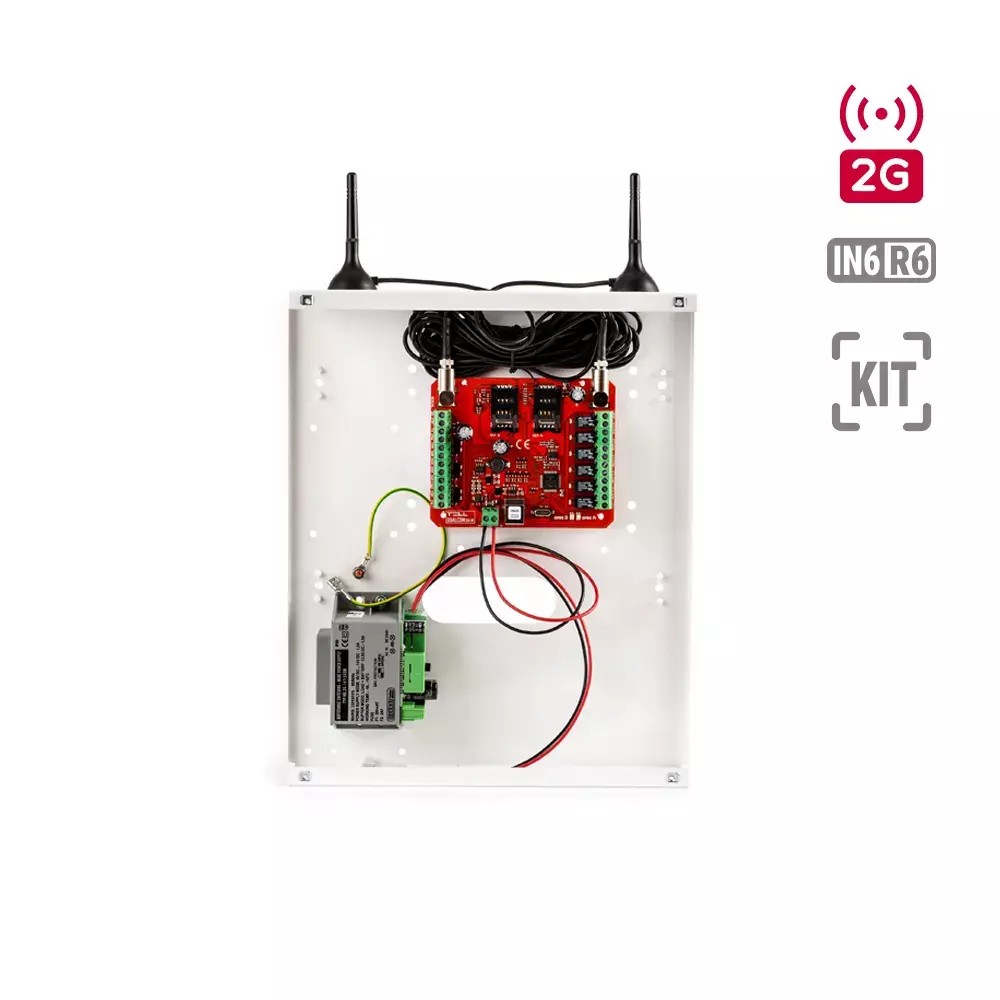

Dualcom - 2G.IN6.R6 KIT

Main features:

• Contact controlled communicator
• GPRS communication
• Supported communication protocols: SIA DC-09, TELLMon, TEX
• Parallel usage of two independent modems
• Communicates directly with the receiver
• Reporting to up to 4 IP addresses, meaning 2 primary IP addresses per network
• 6 NO/NC/EOL contact inputs
• 6 configurable relay outputs
• Supervision message with configurable interval of sending for automatic supervision of transmission channels
• Supported operating system: Windows 10

Characteristics:

• It can be used for any control panel which has contact outputs or the contact outputs can be obtained with relays. Using this device, the input events are sent to the monitoring station’s IP receiver over the GPRS network, using SIA IP protocol based on ANSI/SIA DC-09-2007 standard, TELLMon or TEX protocol.
• No need for a central server, only an end-point IP receiver with Internet connection is necessary. The device works with TELLMon, TEX-MVP and other receivers that support the SIA DC-09 protocol.
• Possibility to separate e.g. alarm events and technical events (sending alarm events only to the alarm monitoring station, and technical events only to the technical monitoring station).
• Due to the application of duplicated phone modules, the
• DUALCOM SIA IP guarantees a high security level, therefore, it is suitable for high risk signal transmission applications (e.g. transmission of fire alarm events).

Application area:

• IP communicator for fire alarm control panels
