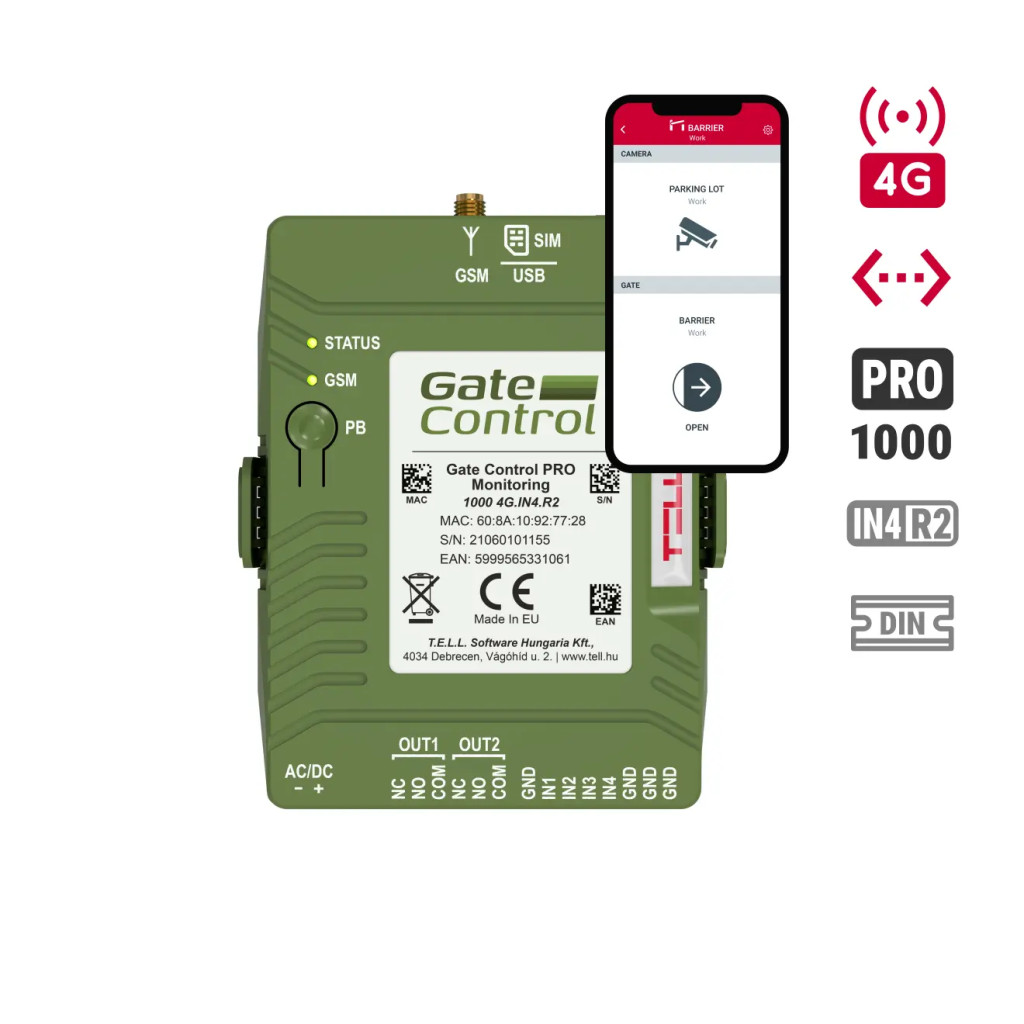

Gate Control PRO 1000 Monitoring DIN rail - ETH.4G.IN4.R2
Professional 4G/ETH gate control and remote monitoring signal module with mobile app and phone call control
The Gate Control PRO 1000 Monitoring DIN rail (ETH.4G.IN4.R2) was designed for gate and barrier systems where a simple opening module isn't enough. The device can be controlled via both Ethernet and 4G/GSM connections, from a mobile app, over the internet, or with a simple phone call, and it can also report to a remote monitoring (alarm receiving) center via the TELLMon protocol.
It's an ideal choice for apartment buildings, industrial sites, logistics centers, parking garages, multi-level car parks and residential complexes, where access rights for up to 1000 users need to be managed, two gates or barriers need to be controlled with a single device, and event logging, feedback, and communication with remote monitoring are important.
Why choose the Gate Control PRO 1000 Monitoring module?
Gate control via mobile app and the internet
The module connects to the internet via its Ethernet port or built-in 4G modem, so the gate or barrier can be controlled from the mobile app, from anywhere.
Control by GSM call with caller ID recognition
The gate can also be controlled with a free call from an authorized phone number – the call doesn't need to be answered, and hidden caller ID numbers can be enabled if needed.
Control two gates with a single device
With 2 relay outputs (NO/NC/COM), two different gates or barriers can be controlled at the same time with the same module.
Suitable for remote monitoring and signal transmission (TELLMon)
The device can report to an alarm receiving/monitoring center via the TELLMon protocol, so the system can be placed under professional supervision.
Manage up to 1000 users
The module manages access rights and entry periods for up to 1000 users, making it suitable for larger apartment buildings and sites as well.
4 configurable inputs and IP camera integration
The status of the 4 inputs can be reported by email, SMS or call, and the module can also display the IP camera image in the mobile app.
Download the Gate Control PRO mobile app
To control your gate or barrier, check the status of the inputs, and receive notifications, install the Gate Control PRO app on your Android or iOS device.
Download – Google Play →Download – App Store →Who is it for?
The Gate Control PRO 1000 Monitoring is designed for those who need a professional gate control solution suitable for a large number of users and remote monitoring.
- apartment buildings and larger residential complexes,
- industrial sites and logistics centers,
- parking garages and multi-level car parks,
- facilities that are or will be connected to a remote monitoring (alarm receiving) service,
- locations where two gates or barriers need to be controlled with a single device,
- locations with a large number of users (up to 1000) managed with periodic access rights.
Key features of the Gate Control PRO 1000 Monitoring
CONTROL
Gate control via mobile app and the internet
The Gate Control PRO 1000 Monitoring has both a built-in Ethernet port and a 4G modem, so an internet connection can be provided via a cable or mobile network. Users can control the gate or barrier assigned to them from the mobile app, from anywhere.
Control by GSM call with caller ID recognition
The system also works based on caller ID recognition: when a call is made from an authorized phone number, the module performs the control action, and the call doesn't need to be answered – it's free of charge. If needed, calls from hidden (undisplayed) numbers can also be enabled.
Control two gates or barriers with one device
The module has 2 relay outputs (NO/NC/COM), which can be used to control two different gates or barriers at the same time – this is especially useful at locations with a separate entry and exit gate, or two separate entrances.
Scheduled control
The outputs can also be controlled on a schedule, at preset times, which is useful at locations where the gate needs to be open or closed during a specific period.
USERS AND ACCESS
Access management for up to 1000 users
The system can store up to 1000 users, each with individual access rights and entry periods. This means you can define not only who can open the gate, but also when and under what conditions – ideal for managing larger apartment buildings, sites and tenant access.
Doorbell forwarding to mobile
The module also forwards the activation of the gate doorbell to users' mobile phones, so ringing at the entrance can be detected remotely as well.
FEEDBACK AND REMOTE MONITORING
Suitable for remote monitoring and signal transmission (TELLMon protocol)
The device can report to an alarm receiving/monitoring center via the TELLMon protocol. This reporting can cover gate control events, events triggered by the inputs, unauthorized attempts, periodic test reports, power supply anomalies, scheduled operations, and reaching the SMS limit.
4 configurable inputs with status indication
The module has 4 inputs configurable in NO/NC mode, with adjustable sensitivity. Notifications about input status changes can be sent by email, SMS or call.
Push, SMS, email and call notifications
The system can notify you via push message, SMS, email or call – for example in case of a gate fault, unauthorized attempt, or other system event. The text of the SMS and email messages can be customized individually.
IP camera integration
An IP camera can also be configured for the module, and its image can be displayed in the mobile app, so the status of the gate can be checked visually as well.
Event log for transparent operation
The device stores the last 1000 events in the event memory, together with the identification of the user and the time of the control action. The event log and reports can also be sent by email.
INSTALLATION AND OPERATION
How does the Gate Control PRO 1000 Monitoring work?
- The installer wires the module to the control electronics of the gate(s) or barrier(s), then connects it to the Ethernet network and/or inserts the 4G SIM card.
- Authorized users are added to the system, and their access rights and entry periods are set.
- The inputs, outputs, scheduled controls and notifications are configured.
- If required, the IP camera is connected, and reporting to the remote monitoring center is set up (TELLMon protocol).
- Users can open the gate using the mobile app or a phone call, and the module logs the events and sends notifications when needed.
Remote programming with Webremoter
In addition to remote programming with the previously known programming software (which only ran on Windows machines), it is now also possible to program via the browser-based Webremoter, which requires no installation and can be used on Windows, macOS and Linux from any browser.
API integration
The module can also be integrated with third-party software via an API connection, allowing it to be connected to custom systems, access control or monitoring software.
SIM card requirements
The device requires a Nano (4FF) size SIM card that supports VoLTE voice transmission. Installation should be carried out by a qualified gate technology professional.
Which Gate Control PRO variant should I choose?
The Monitoring variant is recommended if you also want to connect the site to a remote monitoring/alarm receiving service, or if detailed reporting of events is important. If this is not needed, the standard Gate Control PRO 1000 is a suitable solution, and for smaller systems with up to 20 users, the Gate Control PRO 20 is also a good option.
Web-based programming with Webremoter – no installation required, works on Mac too
With the Webremoter web-based programming software, you can perform the most important settings of the Gate Control PRO 1000 Monitoring from any browser – on Windows, macOS and Linux alike. No software installation, no platform restrictions.
Learn more about Webremoter →Register for Webremoter →
API integration – connect it to third-party software
The Gate Control PRO 1000 Monitoring device opens up new possibilities for third-party software. You can integrate these tools easily and efficiently using our API connection. For more information, see our API documentation or contact our technical support colleagues.
API documentation →Summary
The Gate Control PRO 1000 Monitoring DIN rail is a great choice for any location that requires professional 4G/ETH-based gate control, control via mobile app and phone call, simultaneous management of two gates, and remote monitoring reporting. Thanks to its capacity for up to 1000 users, 4 configurable inputs, IP camera integration, 1000-event log and reporting via the TELLMon protocol, the module offers far more than a traditional GSM gate opener.
Demo videos
More videos on the TELL YouTube channel: https://www.youtube.com/tellsoftware
Frequently asked questions
What is the Gate Control PRO 1000 Monitoring used for?
It can be used to control electric gates, garage doors, barriers, parking lots, parking garages, multi-level car parks and residential complexes, as well as for the related remote monitoring reporting.
How many users can the device manage?
The Gate Control PRO 1000 Monitoring can manage up to 1000 users, each with individual access rights and entry periods.
Can it be controlled by phone call?
Yes. The system works based on caller ID recognition: the gate can be controlled with a free call from an authorized phone number, and the call doesn't need to be answered.
Can it control two gates as well?
Yes. Thanks to the 2 relay outputs, the module is also suitable for controlling two different gates or barriers at the same time.
What does it mean that the device is suitable for remote monitoring and signal transmission?
The module can report gate control events, unauthorized attempts, power supply anomalies and other system events to an alarm receiving/monitoring center via the TELLMon protocol.
What kind of SIM card does it need?
A Nano (4FF) size SIM card that supports VoLTE voice transmission is required.
Can an IP camera be connected to it?
Yes, the module supports connecting an IP camera, and the camera image can also be displayed in the mobile app.
Can it be programmed remotely?
Yes, via a USB-C cable or over the internet (IP), using the web-based Webremoter software, which requires no installation and can also be used on Windows, macOS and Linux.
Is there API integration?
Yes, the module can also be integrated with third-party software via an API connection.
How many events does the event log store?
The device stores the last 1000 events, together with the identification of the user and the time of the control action.
Where can I download the Gate Control PRO app?
The app can be downloaded from Google Play for Android devices and from the App Store for iOS devices.
Identifiers
Additional product versions:
ETH.4G.IN4.R2
Technical specification
Transmission channel:
ETH/4G/VoLTE/2G/GSM
Frequency band:
GSM/GPRS/EDGE: 900/1800 MHz, LTE/FDD: B1/B3/B5/B7/B8/B20
Operating temperature:
-20 ºC - +70 ºC
Supply voltage:
12-30V DC or 12-24V AC
Current consumption (maximum):
500 mA @ 12V DC
Current consumption (nominal):
130 mA @ 12V DC
Casing:
Plastic
Terminal connector design:
Detachable
Dimensions:
88.4x119x23.1
Package size:
180x131x55 mm
Product weight:
190 g
Weight (with package):
360 g
Inputs
Contact inputs:
4
Configurable inputs (NO/NC):
Yes
Adjustable input sensitivity:
Yes
Outputs
Relay outputs:
2 (NO/NC/COM)
Output control through free GSM call:
Yes
Notifications
GSM voice call:
Yes
SMS sending:
Yes
E-mail sending:
Yes
Push notification:
Yes
Users
Maximal number of users:
1 000
User phone numbers for forwarding incoming SMS messages:
1
User phone numbers for reporting:
4
User phone numbers for output control:
1000 / Unlimited
Possibility to allow control with hidden phone number:
Yes
Control with caller identification:
Yes
Programming
Programming method:
USB C data transmit @ charging cable / IP
Programming software:
Yes
Web-based programming:
Other functions
Built-in internal clock:
Yes
Security password:
Yes
Event logs / Number of stored events:
Yes / 1000
Caller identification:
Yes
Mobile application:
Yes
Individual email sending with predefinable message:
Yes
Individual SMS sending to user phone numbers with predefinable message:
Yes
Periodic test report:
Yes
IP camera support:
Yes
Weight:
360 g/pcs
