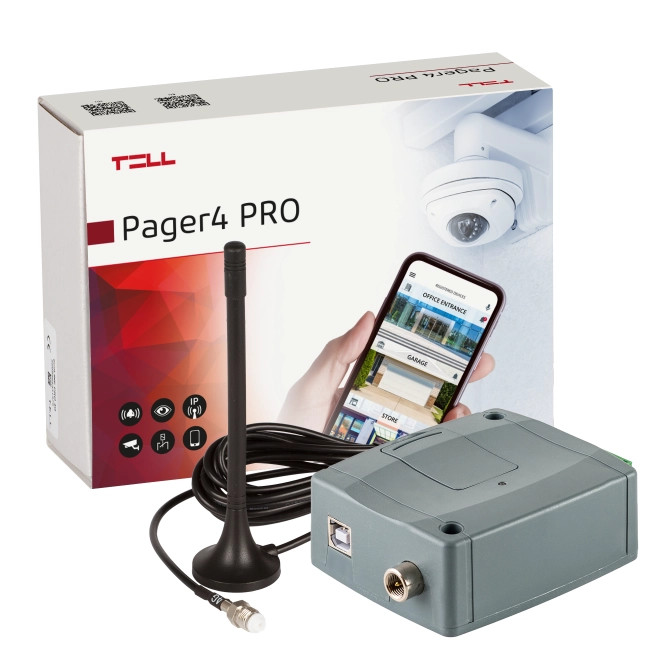

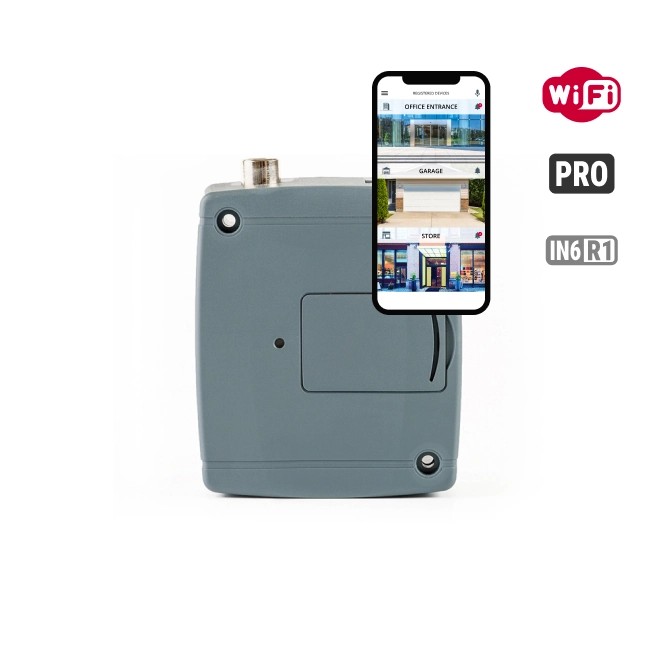

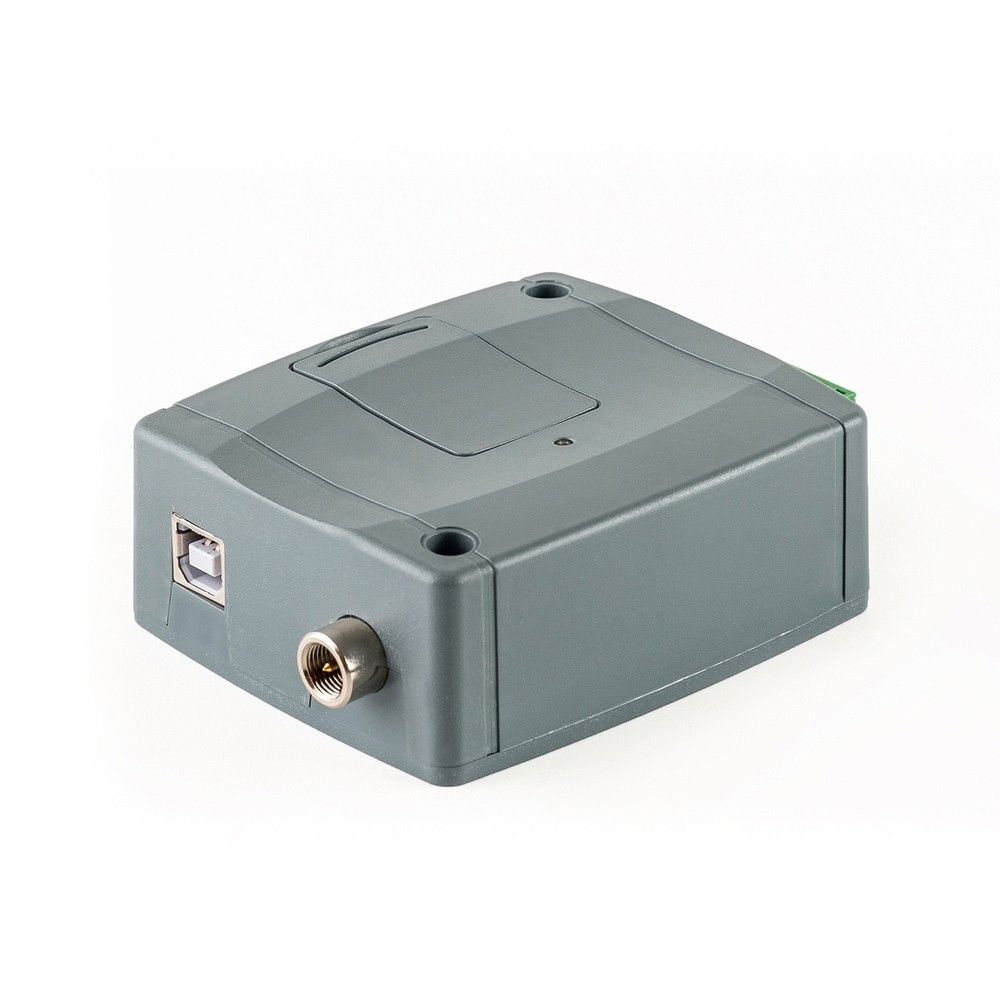

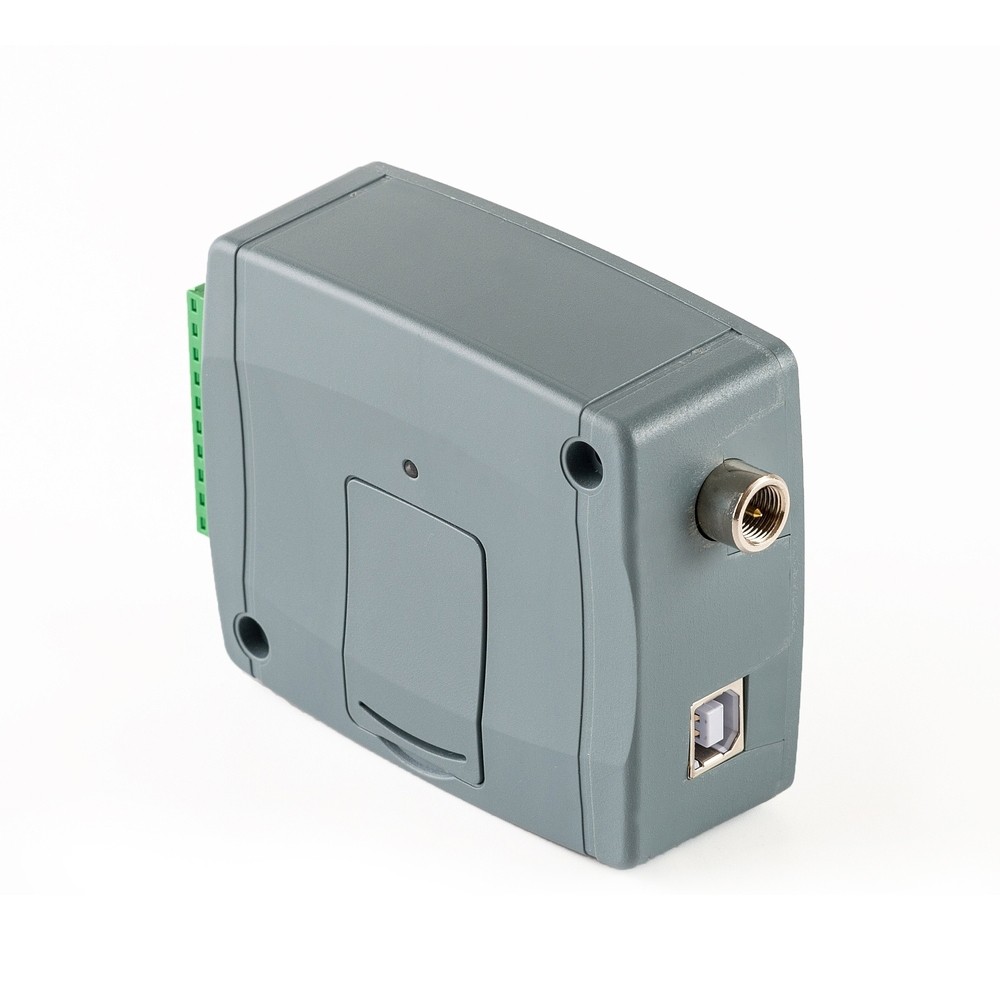

Pager4 PRO - WiFi.IN6.R1

Contact controlled communicator, which can be used as an optional reporting device for alarm control panels, as a standalone reporting device, or as a 6-zone standalone alarm control device with arming and disarming option.

More details about the product

Additional product versions

44 300 Ft
gross: 56 261 Ft

Details

Main features:

WiFi communication (2.4 GHz)
6 configurable NO/NC inputs
1 NO relay output controllable by events and also remotely
E-mail sending
Push notification
IP camera support
Reporting to monitoring stations over the Internet to up to 4 IP addresses with SIA IP DC-09, TELLMon or TEX protocol
Reports events to monitoring stations using up to 10 different notification templates, defining the priorities of the reporting channels
Contact ID event codes configurable for each event, including partition and zone options
Output control can be customized separately for each event using different operation modes
Extended service events

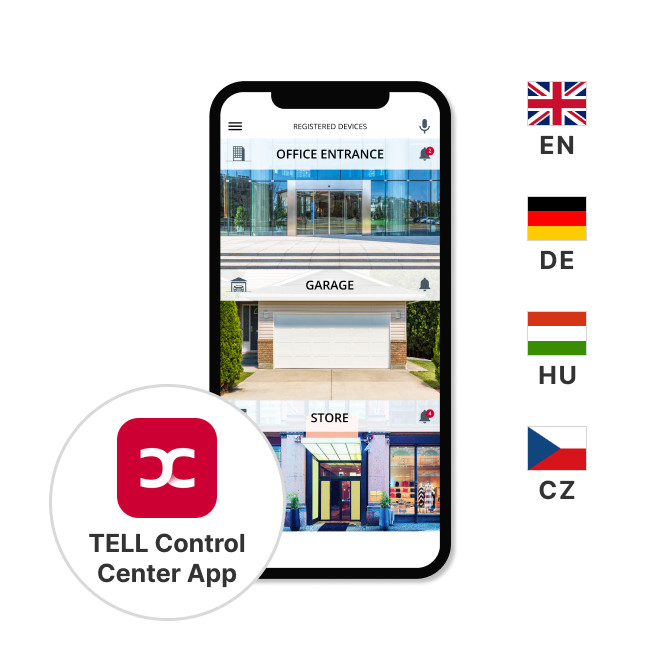

Multiplatform mobile application (iOS,Android)
Supported operating system: Windows 10

Application area:

Optional reporting device for alarm control panel
6-zone standalone alarm control device with arming and disarming option

Product recommendation:

IP Camera detector (free download)

Info

Identifiers

Additional product versions:

WiFi.IN6.R1

Technical specification

Transmission channel:

WiFi

Frequency band:

2,4 GHz, 802.11 b/g/n

Operating temperature:

-20 ºC - +70 ºC

Supply voltage:

12-30 VDC or 12-16,5 VAC

Current consumption (maximum):

500 mA @ 12 VDC

Current consumption (nominal):

120 mA @ 12 VDC

Casing:

Plastic

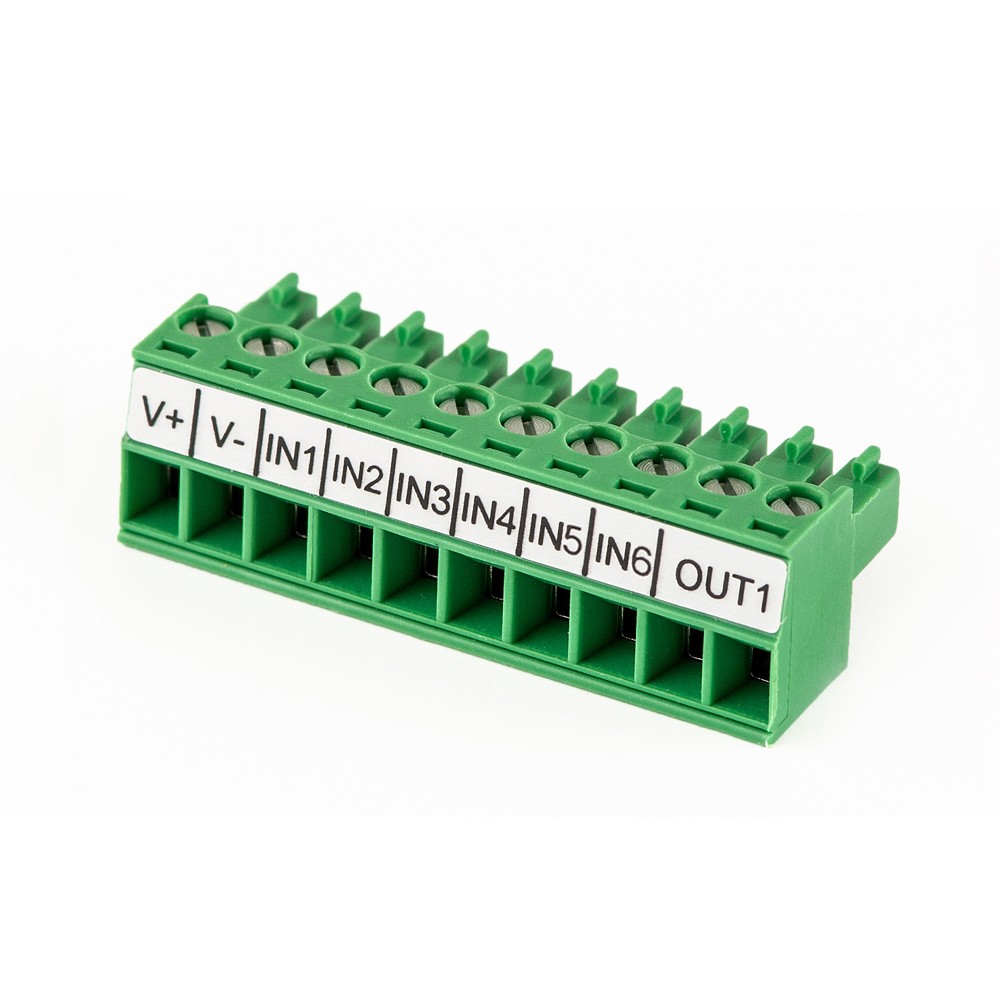

Terminal connector design:

Connectable

Dimensions:

84x72x32 mm

Package size:

180x131x55 mm

Product weight:

200 g

Weight (with package):

270 g

Inputs

Contact inputs:

Configurable inputs (NO/NC):

Adjustable input sensitivity:

Yes

Outputs

Relay outputs:

Notifications

E-mail sending:

Yes

Push notification:

Yes

IP-based reporting to monitoring station:

Yes

Supported protocols

SIA IP DC-09 protocol:

Yes

TELLMon protocol:

Yes

TEX protocol:

Yes

Remote monitoring

Monitoring station IP addresses:

Individual reporting to monitoring station:

Yes

Programming

Programming method:

USB / IP

Programming software:

Yes

Other functions

Configurable internal Contact ID event codes:

Yes

Security password:

Yes

Event logs / Number of stored events:

Yes / 1000

Mobile application:

Yes

Periodic test report:

Yes

Alarm restriction:

Yes

Alarm control panel function (arming/disarming, entry and exit delay):

Yes

Selectable 24h zones:

Yes

NTP server support:

Yes

IP camera support:

Yes

Weight:

270 g/db
