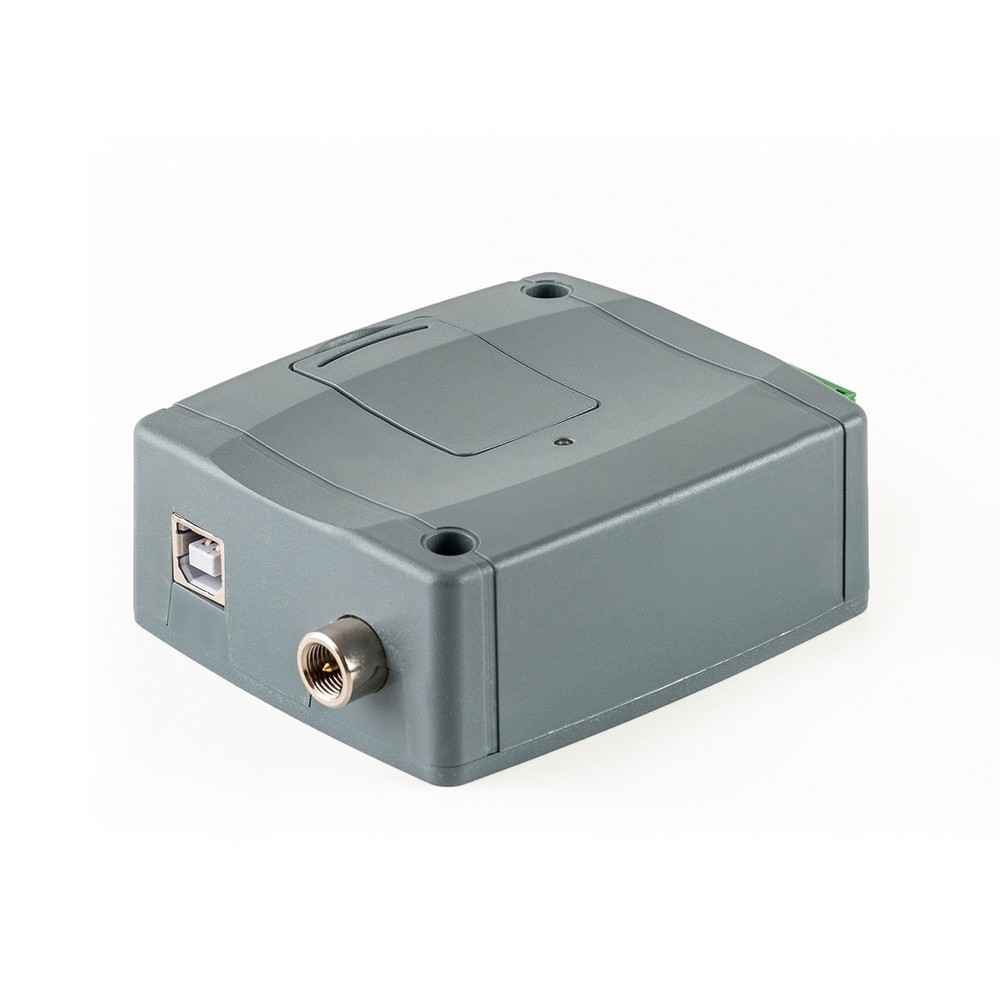

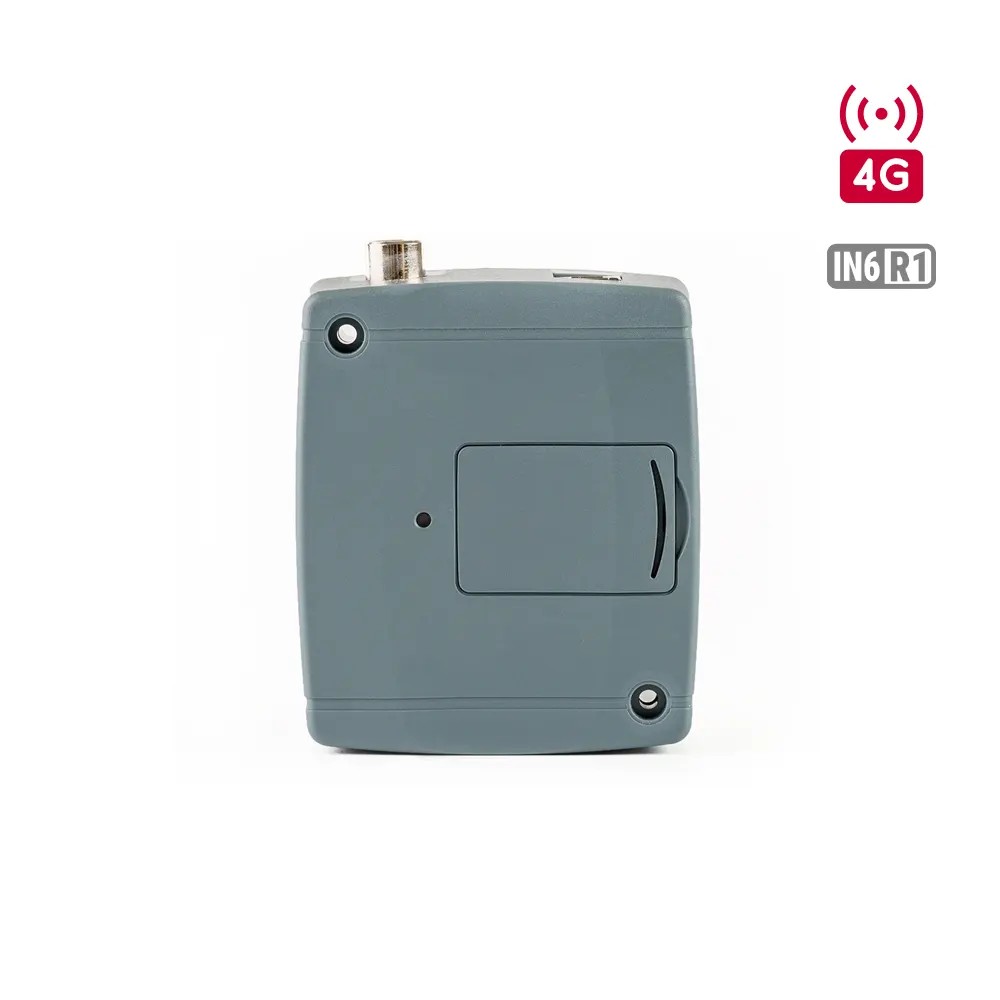

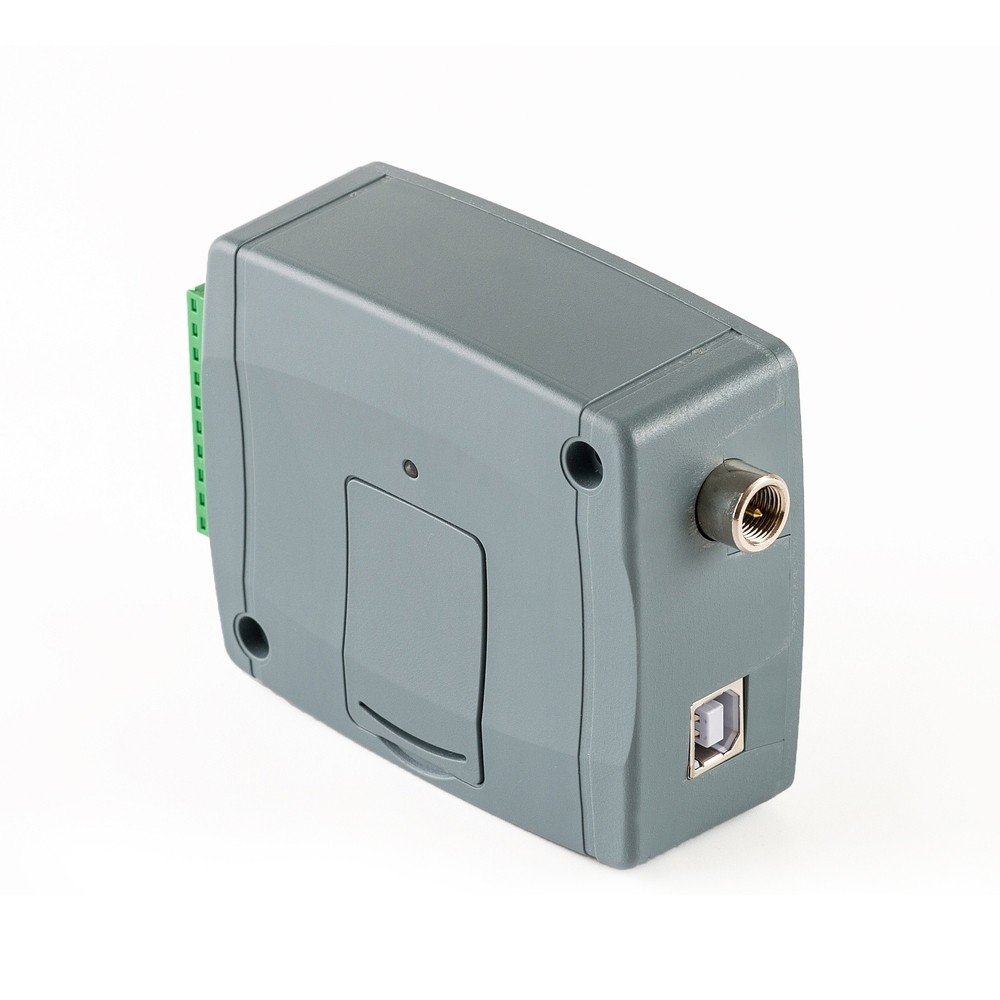

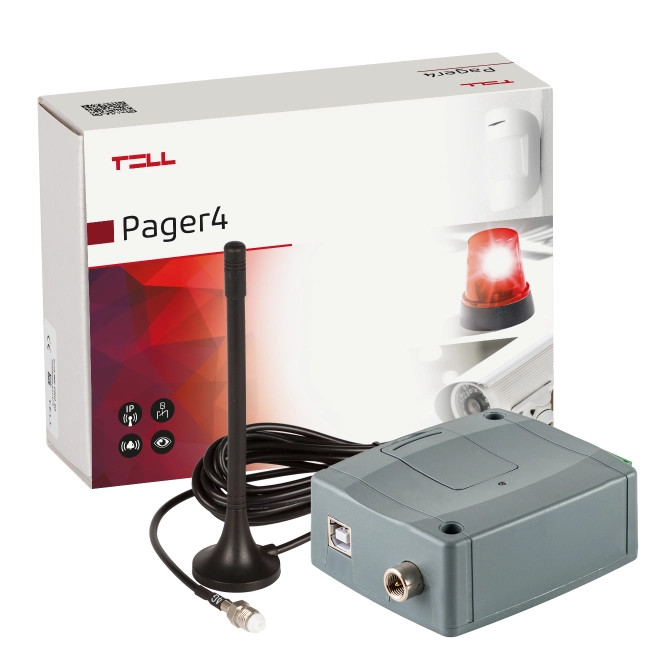

Pager4-4G.IN6.R1

Contact controlled communicator, which can be used as an optional reporting device for alarm control panels, as a standalone reporting device, or as a 6-zone standalone alarm control device with arming and disarming option.

More details about the product

Additional product versions

46 600 Ft
gross: 59 182 Ft

I want to try it

Details

Main features:

4G/3G/2G communication
6 configurable NO/NC inputs
1 NO relay output controllable by events and also remotely
Combines previous GSM and GPRS product versions with extended and improved features
Sends SMS with configurable message for each event to up to 10 phone numbers
Voice call to up to 10 phone numbers, with up to 15 recordable messages of 10 seconds each
Reporting to monitoring stations over the Internet to up to 4 IP addresses with SIA IP DC-09, TELLMon or TEX protocol
Reports events to monitoring stations using up to 10 different notification templates, defining the priorities of the reporting channels
Contact ID event codes configurable for each event, including partition and zone options
Output control can be customized separately for each event using different operation modes
Extended service events
Supported operating system: Windows 10

Application area:

Optional reporting device for alarm control panel
Standalone GSM reporting device
6-zone standalone alarm control device with arming and disarming option

Info

Identifiers

Additional product versions:

4G.IN6.R1

Technical specification

Transmission channel:

4G / 2G / GSM

Frequency band:

900/1800 MHz@GSM/EDGE, B1/B8@WCDMA, B1/B3/B7/B8/B20/B28A@LTE

Operating temperature:

-20 ºC - +70 ºC

Supply voltage:

12-30 VDC or 12-16,5 VAC

Current consumption (maximum):

500 mA @ 12 VDC

Current consumption (nominal):

120 mA @ 12 VDC

Casing:

Plastic

Terminal connector design:

Connectable

Dimensions:

84x72x32 mm

Package size:

180x131x55 mm

Product weight:

200 g

Weight (with package):

270 g

Inputs

Contact inputs:

Configurable inputs (NO/NC):

Adjustable input sensitivity:

Yes

Outputs

Relay outputs:

Output control through free GSM call:

Yes

Output control with commands through GSM voice call:

Yes

Output control by SMS:

Yes

Output activation on GSM fault:

Yes

Notifications

GSM voice call:

Yes

SMS sending:

Yes

IP-based reporting to monitoring station:

Yes

DTMF-based reporting to monitoring station:

Yes

Supported protocols

SIA IP DC-09 protocol:

Yes

SIA DC-05 (DTMF) protocol:

Yes

TELLMon protocol:

Yes

TEX protocol:

Yes

Remote monitoring

Monitoring station IP addresses:

Monitoring station phone numbers:

Individual reporting to monitoring station:

Yes

Users

User phone numbers for forwarding incoming SMS messages:

User phone numbers for reporting:

User phone numbers for output control:

Programming

Programming method:

USB / IP

Programming software:

Yes

Other functions

Configurable internal Contact ID event codes:

Yes

Security password:

Yes

Event logs / Number of stored events:

Yes / 1000

Caller identification:

Yes

Individual SMS sending to user phone numbers with predefinable message:

Yes

Periodic test report:

Yes

Alarm restriction:

Yes

Alarm control panel function (arming/disarming, entry and exit delay):

Yes

Selectable 24h zones:

Yes

Selectable confirmation request from user phone numbers:

Yes

NTP server support:

Yes

Weight:

270 g/db
