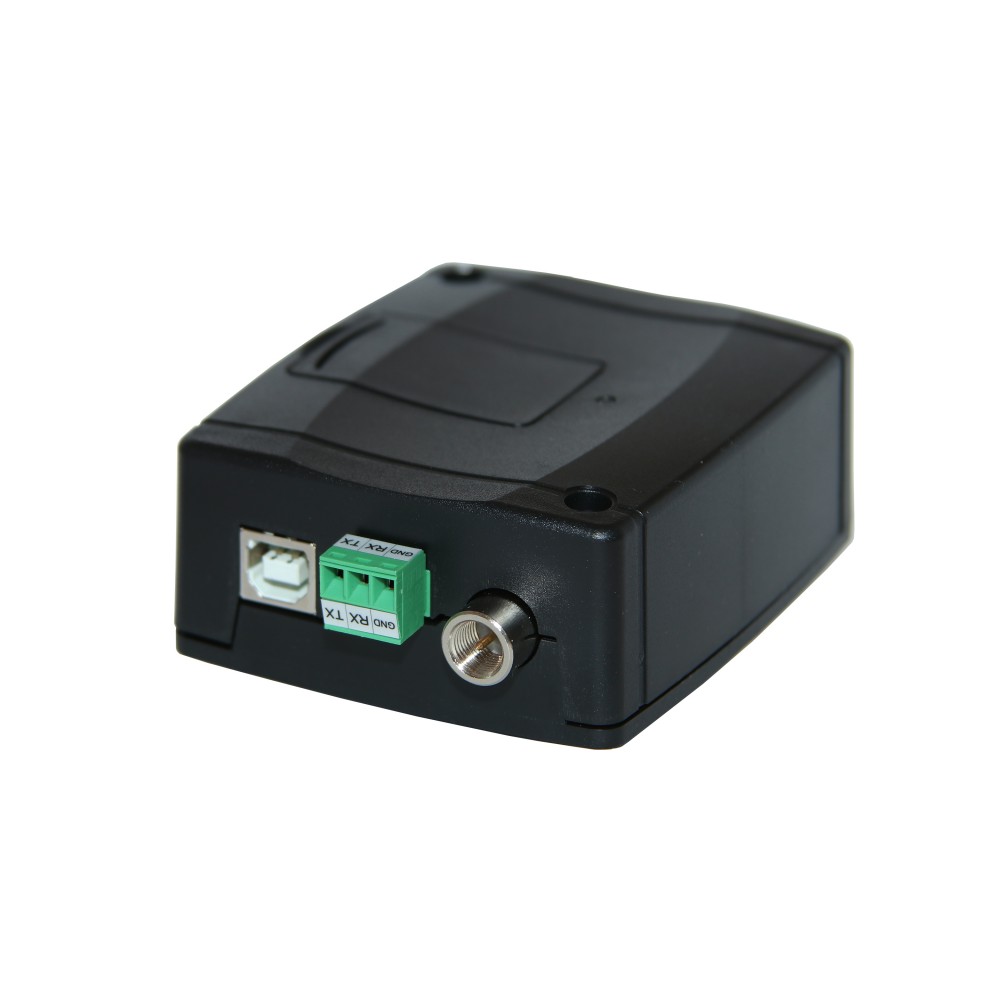

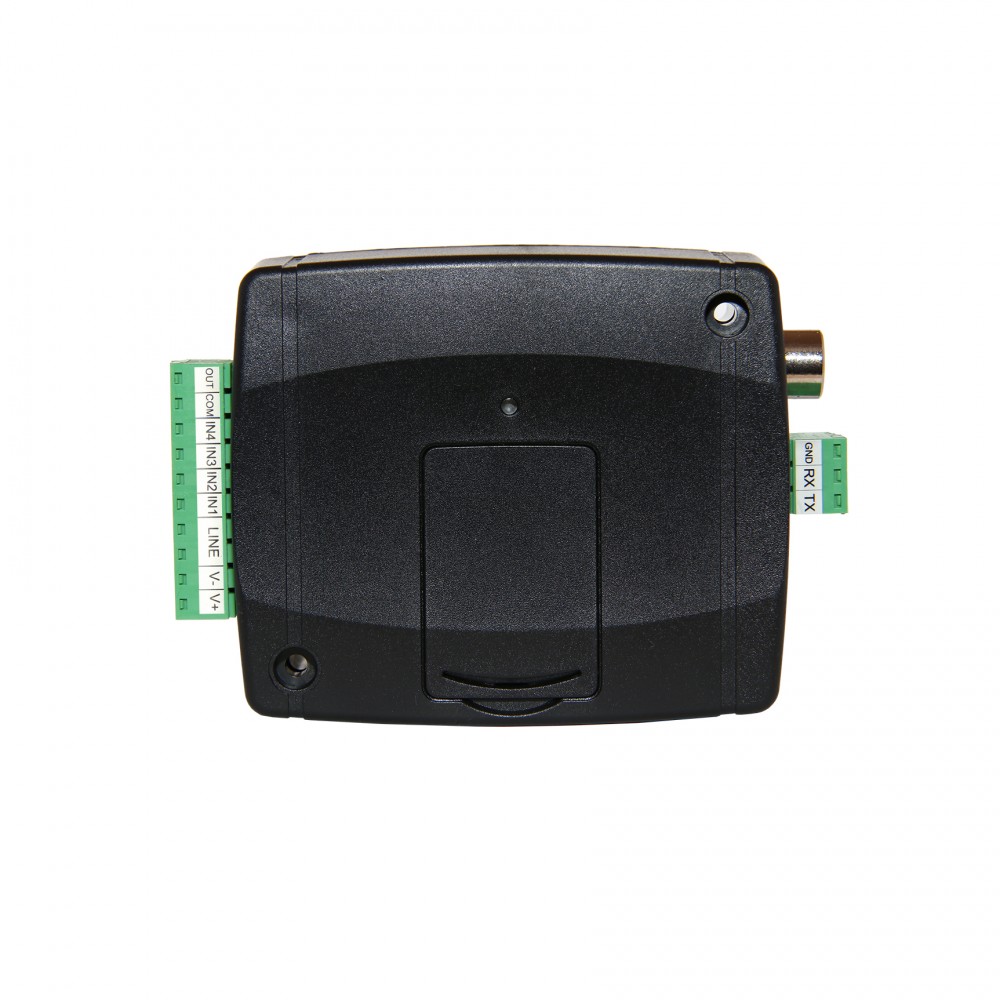

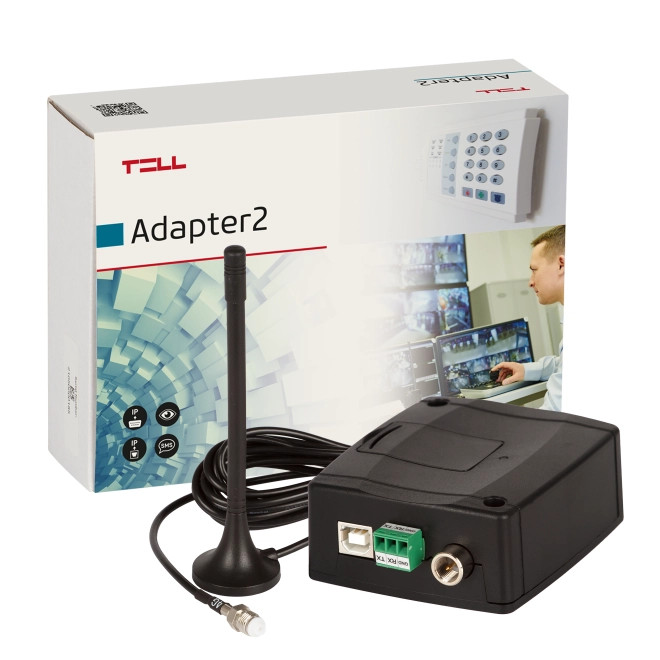

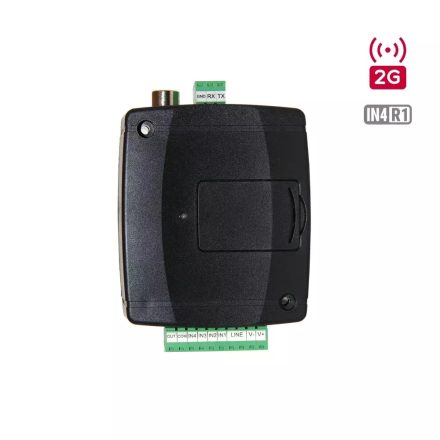

Adapter2 - 2G.IN4.R1

The adapter enables installing an alarm system where no landline is available, but reporting to a monitoring station is required. A general emergency signaling device for elderly people and people in need of nursing, activated by simply picking up the receiver of the connected landline phone device.

Details

Additional product versions

2G.IN4.R1

4G.IN4.R1

Details

Main Features:

Phone line emulator
Programmable through USB and IP
GPRS communication
TEX, TELLMon, SIA DC-09 protocol support
4 configurable NO/NC inputs
1 NO relay output, controllable by events
Reporting to up to 4 monitoring receivers at the same time
4 user phone numbers for sending SMS notifications
Notification through SMS about events (even by partition or zone)
Remote firmware update
Configurable Contact ID codes for each input and service event
Detailed event log
Transparent serial port support
Supported operating system: Windows 10

Info

Identifiers

Additional product versions:

2G.IN4.R1

Technical specification

Transmission channel:

2G / GSM

Frequency band:

850/900/1800/1900 MHz @GSM/GPRS

Operating temperature:

-20 ºC - +70 ºC

Supply voltage:

12-24 VDC

Current consumption (maximum):

500 mA @ 12 VDC

Current consumption (nominal):

120 mA @ 12 VDC

Casing:

Plastic

Terminal connector design:

Connectable

Dimensions:

84x72x32 mm

Package size:

180x131x55 mm

Product weight:

200 g

Weight (with package):

300 g

Inputs

Contact inputs:

Configurable inputs (NO/NC):

Yes

Adjustable input sensitivity:

Yes

Outputs

Relay outputs:

Output activation on GSM fault:

Yes

Notifications

GSM voice call:

Yes

SMS sending:

Yes

IP-based reporting to monitoring station:

Yes

DTMF-based reporting to monitoring station:

Yes

Supported protocols

SIA IP DC-09 protocol:

Yes

SIA DC-05 (DTMF) protocol:

Yes

TELLMon protocol:

Yes

TEX protocol:

Yes

Remote monitoring

Monitoring station IP addresses:

Individual reporting to monitoring station:

Yes

Users

User phone numbers for forwarding incoming SMS messages:

User phone numbers for reporting:

Programming

Programming method:

USB / IP

Programming software:

Yes

Other functions

Configurable internal Contact ID event codes:

Yes

Event logs / Number of stored events:

Yes / 1000

Individual SMS sending to user phone numbers with predefinable message:

Yes

Automatic dialing (emergency call):

Yes

Filtering of Contact ID event codes:

Yes

Adaptation of alarm control panels to mobile network:

Yes

Sending SMS generated from Contact ID event codes to user phone numbers:

Yes

Phone line emulation:

Yes

NTP server support:

Yes

Transparent serial port support:

Yes

Weight:

300 g/db
