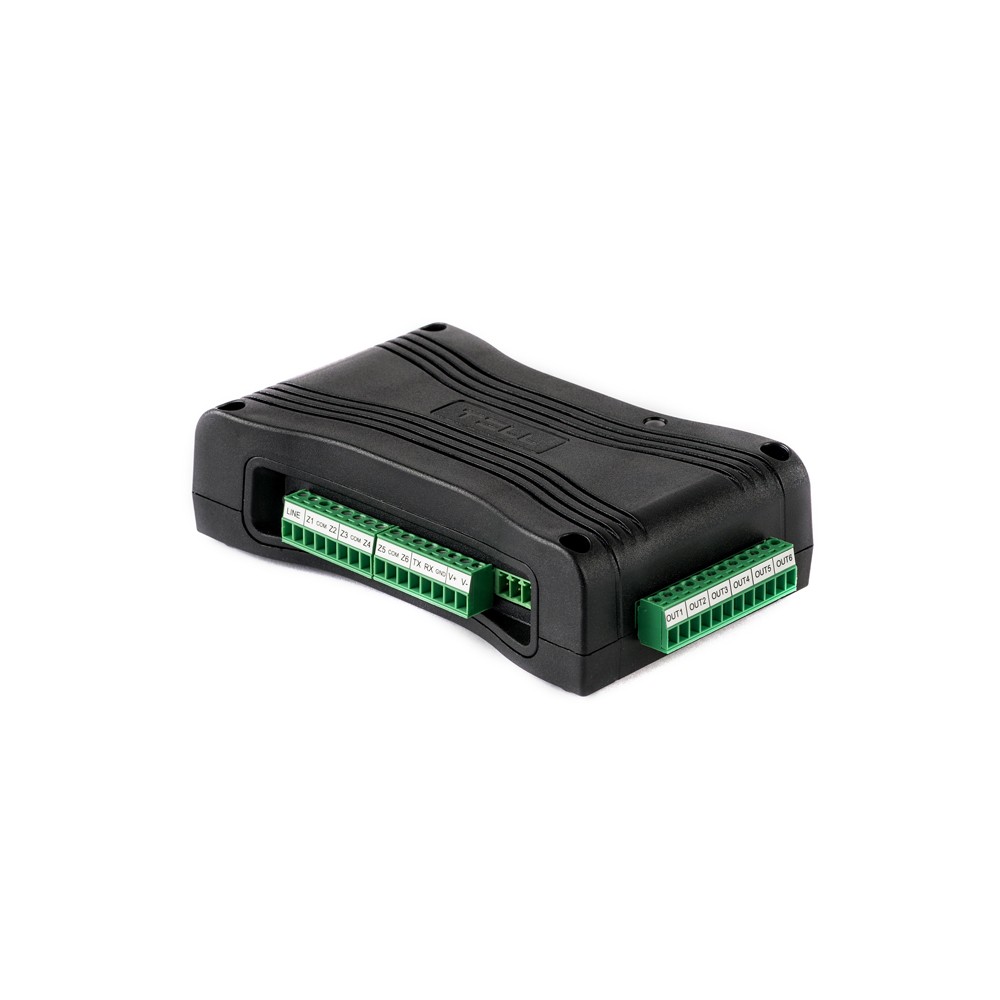

IP Bridge PRO-4G.IN6.R6

Complex communicator, which oﬀers a solution for connecting alarm systems to remote monitoring stations. It can be used as a standalone reporting device or even as an IP-based control device. The IP Bridge PRO enables remote configuration of alarm control panels and communication between devices with an RS-232 interface over the Internet.

More details about the product

Additional product versions

4G.IN6.R6

I want to try it

Details

Main Features:

Simulated phone line output
6 NO/NC (configurable) contact inputs
6 NO (open in default) relay outputs
1 RS-232 input
1 Ethernet connector
1 USB host
4G modem
Wired internet / 4G-based IP communication
Supported communication protocols: SIA DC-09, TELLMon, TEX
Transparent serial port support
Storing and assigning surveillance camera images with events
VoIP based voice call and SMS notification
E-mail sending
Radius server support
NTP server support
IP camera support
Connecting remote modules for output controlling
HTTP/HTTPS protocol support
Built-in web server for configuration
Router supervision
Supported operating system: Windows 10

Application Area:

Connecting alarm system with monitoring stations
Independent communicator
IP-based control module
Remote programming of alarm control panels
Communication between devices with RS-232 interface
Using in building engineering (HVAC)
Router monitoring in IT systems

Product recommendation:

IP Camera detector (free download)

Data

Identifiers

Additional product versions:

4G.IN6.R6

Technical specification

Transmission channel:

4G / 2G / LAN

Frequency band:

900/1800 MHz@GSM/EDGE, B1/B8@WCDMA, B1/B3/B7/B8/B20/B28A@LTE

Operating temperature:

-20 ºC - +70 ºC

Supply voltage:

12-24 VDC

Current consumption (maximum):

700 mA @ 12 VDC

Current consumption (nominal):

320 mA @ 12 VDC

Casing:

Plastic

Dimensions:

131x82x37

Package size:

180x131x55 mm

Product weight:

200 g

Weight (with package):

350 g

Inputs

Contact inputs:

EOL inputs:

Yes

Configurable inputs (NO/NC):

Yes

Adjustable input sensitivity:

Yes

Outputs

Relay outputs:

Notifications

E-mail sending:

Yes

Push notification:

Yes

VoIP-based voice call:

Yes

VoIP-based SMS sending:

Yes

IP-based reporting to monitoring station:

Yes

Supported protocols

SIA IP DC-09 protocol:

Yes

TELLMon protocol:

Yes

TEX protocol:

Yes

Remote monitoring

Monitoring station IP addresses:

Individual reporting to monitoring station:

Yes

Programming

Programming method:

Other functions

Configurable internal Contact ID event codes:

Yes

Security password:

Yes

Event logs / Number of stored events:

Yes / 500

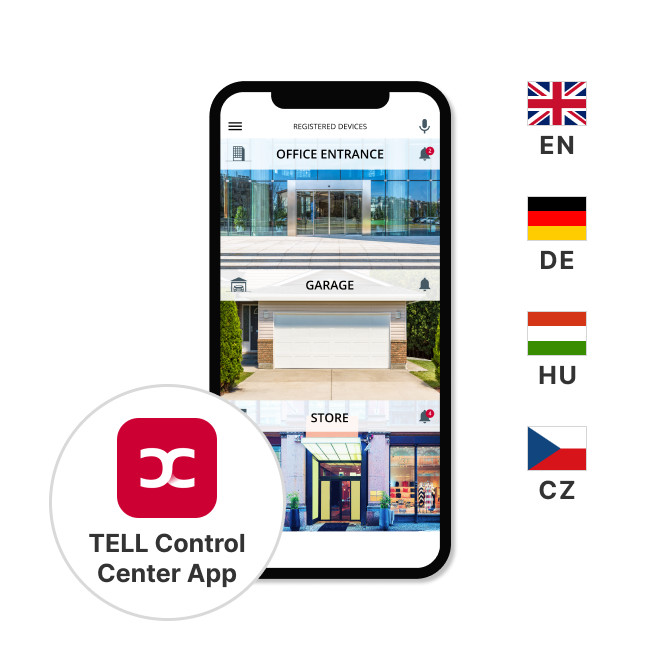

Mobile application:

Yes

Individual email sending with predefinable message:

Yes

Individual SMS sending to user phone numbers with predefinable message:

Yes

Periodic test report:

Yes

Filtering of Contact ID event codes:

Yes

Alarm sending to user phone numbers with siren tone being used:

Yes

Alarm restriction:

Yes

Sending SMS generated from Contact ID event codes to user phone numbers:

Yes

Phone line emulation:

Yes

NTP server support:

Yes

IP camera support:

Yes

RADIUS server support:

Yes

Router supervision:

Yes

Transparent serial port support:

Yes

Connecting remote modules for output controllin:

Yes

Pre-recordable voice message sending to user phone numbers:

Yes

Weight:

350 g/db
